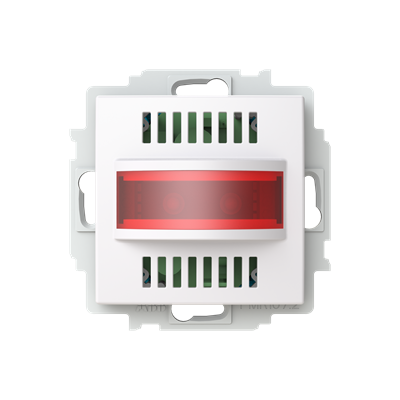

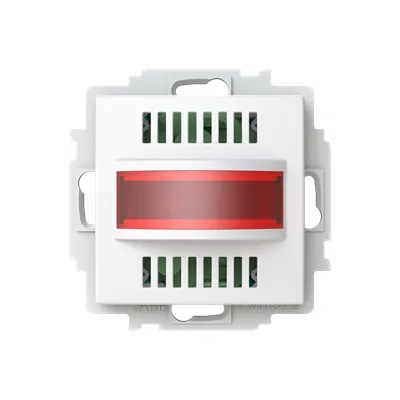

2TKA00004971
Part Number: 2TKA00004971
Product Information
Extended Description
2TKA00004971 ABB: The loop controls itself against short circuits and breaks. Possibility to connect both closing and opening contacts. Input Memory / no memory. Potential free output. External cancelling with closing / opening contact. Operating voltage: 15 - 28 V AC / 18 - 35 V DC. Current Consumption: 110 mA AC / 60 mA. Sound intensity / frequency: 78 dB / 2,3 kHz (Intensity measured at 30 cm distance).
Instructions and Manuals
Installation instruction FEH2001_CTI1.190
Degree of Protection
IP20
Number of Batteries
0
Rated Voltage (Ur)
0 … 42 V AC | 0 … 60 V DC
Input Voltage Type
AC/DC
Design Range
Saga
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
71 mm
Product Net Height
36 mm
Product Net Depth / Length
71 mm
Product Net Weight
0.085 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] FEH2001-916
E-Number (Finland)
7060800
E-Number (Norway)
6315526
E-Number (Sweden)
5500559
End Of Life Disassembling Instructions
End of Life Instruction for SAGA™ products covered by WEEE
Environmental Product Declaration - EPD
EPD for Saga Alarm unit
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4bcb1b38-5a6e-4409-955c-b0eefe2716bc Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Signal EMC products ENG
ETIM 9
EC002247 - Handicapped person element for domestic switching devices
