2TKA00004976
Part Number: 2TKA00004976
Product Information
Extended Description

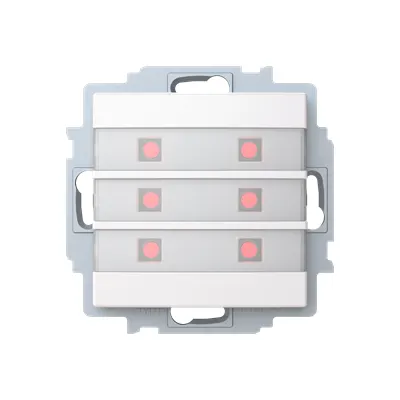

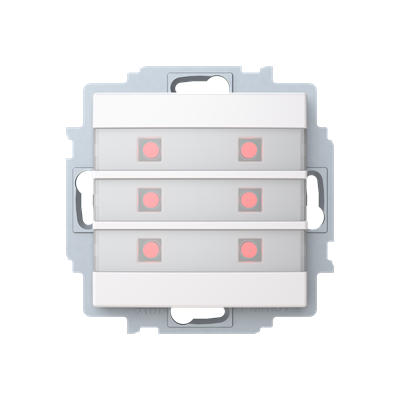

2TKA00004976 ABB: The signal panel can be used as an 3/6 points alarm receiving panel in calling and alarm systems. With 6 LED's. Good marking possibilities. Operating voltage: 12 - 24 V AC/DC. Current consumption/LED: 4 mA AC / 7 mA DC.
Degree of Protection
IP20
Number of Batteries
0
Rated Voltage (Ur)
12 ... 24 V AC
Input Voltage Type
AC/DC
Design Range
Saga
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
71 mm
Product Net Height
36 mm
Product Net Depth / Length
71 mm
Product Net Weight
0.083 kg
E-Number (Finland)
7060805
E-Number (Norway)
6315533
E-Number (Sweden)
5500580
End Of Life Disassembling Instructions
End of Life Instruction for SAGA™ products covered by WEEE
Environmental Product Declaration - EPD
EPD for Saga Signal Panel
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4bcb1b38-5a6e-4409-955c-b0eefe2716bc Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Signal EMC products ENG
ETIM 9
EC002247 - Handicapped person element for domestic switching devices
