2TKA00004977
Part Number: 2TKA00004977
Product Information
Extended Description

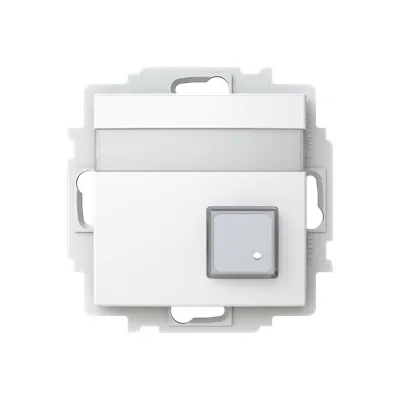

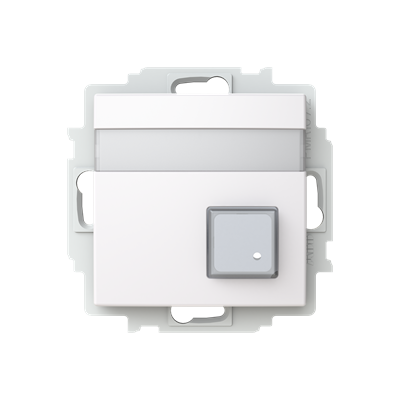

2TKA00004977 ABB: A device including a push button as well as a buzzer. The LED of the push button and the buzzer operates in parallel. The buzzer can be cancelled with the push button. When cancelled the LED remains on till the alarm goes off. Good marking possibilities on the push button and the name plate. Operating voltage 9,5 - 28 VAC / 9,5 - 35 V DC. Current consumption: 45 mA AC / 25 mA DC. Load capacity of the switch: 30 VAC / 35 VDC, 100 mA AC/DC, 3 VA / 3 W.
Instructions and Manuals
Installation Instruction FIP1011 CTI1.372
Degree of Protection
IP20
Number of Batteries
0
Rated Voltage (Ur)
9.5 ... 28 V AC | 9.5 ... 35 V DC
Input Voltage Type
AC/DC
Design Range
Saga
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
71 mm
Product Net Height
40 mm
Product Net Depth / Length
71 mm
Product Net Weight
0.088 kg
E-Number (Finland)
7060806
E-Number (Norway)
6315532
E-Number (Sweden)
5500581
End Of Life Disassembling Instructions
End of Life Instruction for SAGA™ products covered by WEEE
Environmental Product Declaration - EPD
EPD for Saga Disabled Toilet Set + Push Button
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4bcb1b38-5a6e-4409-955c-b0eefe2716bc Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Signal EMC products ENG
ETIM 9
EC002247 - Handicapped person element for domestic switching devices
