2TKA00005212
Part Number: 2TKA00005212
Product Information
Extended Description

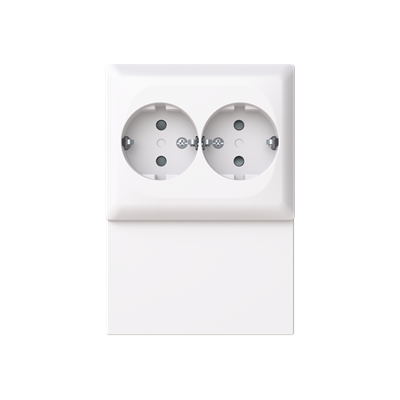

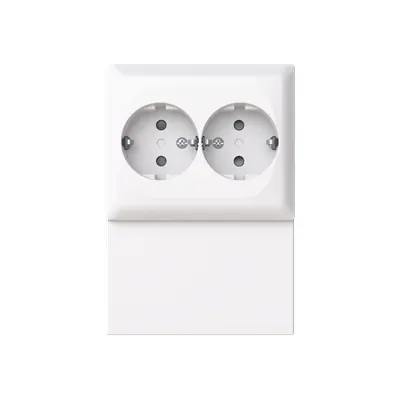

2TKA00005212 ABB: Double socket outlet for lath installation. The outlet has terminals for each contact of the socket outlet for max 4 rigid wires. Safety+ featured in the insert. Bio-circular plastics used in the bottom and centre plate.
Mounting Type
Surface mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP21
Number of Phases
1
Number of Gangs
2
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 50 Hz
Design Range
Saga
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
98 mm
Product Net Height
42 mm
Product Net Depth / Length
142 mm
Product Net Weight
0.153 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] 402EL-916
E-Number (Finland)
2480305
E-Number (Norway)
1511654
Environmental Product Declaration - EPD
EPD for Saga surface Socket Outlets
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity 402_404 - Socket outlets ENG
ETIM 9
EC000125 - Socket outlet
