2TKA00005216
Part Number: 2TKA00005216
Product Information
Extended Description

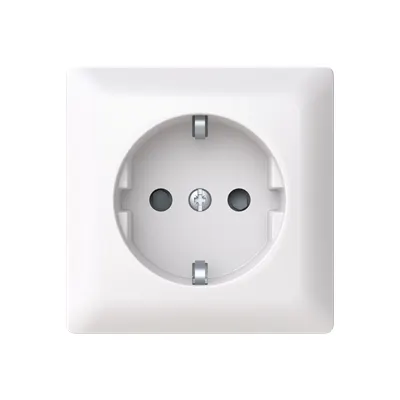

2TKA00005216 ABB: Single socket outlet for surface mounting. There are terminals for each contact of the socket outlet. The terminals are for max 2 rigid wires. Bio-circular plastics used in the bottom and centre plate.
Mounting Type
Surface mounted
Type of Fastening
Mounting with Screw
Number of Phases
1
Number of Gangs
1
Connection Type
Push-In
Socket Outlet Type
Earthing Pin
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 50 Hz
Design Range
Saga
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
63 mm
Product Net Height
43 mm
Product Net Depth / Length
63 mm
Product Net Weight
0.069 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] 6620EAKS-916
E-Number (Finland)
2480301
Environmental Product Declaration - EPD
Not available
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
