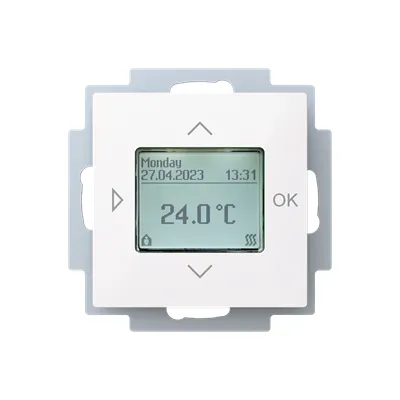

ABB 2TKA00005246 Thermostat Heater - IP21
Part Number: 2TKA00005246
Quick Summary
ABB 2TKA00005246 Thermostat Heater delivers precise temperature control for compact control panels. For engineers, space constraints and wiring complexity often slow project timelines, so a pre-programmed solution helps accelerate deployment. The device carries CE conformity, RoHS and REACH declarations to meet regulatory requirements and IP21 protection suitable for common enclosure environments. Its Saga design with external control options enables quick installation, consistent energy use, and reliable climate management across automation cabinets. By combining dependable performance with straightforward wiring, this thermostat supports efficient maintenance, reduced downtime, and predictable total cost of ownership in industrial applications.
Product Information
Extended Description
2TKA00005246 ABB: Thermostat with low insert (20 mm mounting depth) meeting the Ecodesign requirements. The thermostat is pre-programmed. Rated voltage 230 V AC ± 10% 50 Hz Output 1 no and connectors 1.5 mm² to 4 mm² Switching current 250 V AC / 16 (2) A, protection class II and protection class IP21. Operating temperature 0 ° C to 35 ° C and storage temperature -20 ° C to 70 ° C Clock Accuracy (at 20 ° C) <+/- 0.5 sec / min Power consumption (standby) <0.05 W Floor sensor NTC 10kΩ @ 25˚C and external control (EXT connector) 230V AC / 10µA (same phase).
Degree of Protection
IP21
Temperature Class Default
I
Measuring Range
5 … 35 °C
Number of Outputs
Heater 1 | Cooler 0
Number of Switching Programs
7
Operating Mode
Button
Device Clock Interval
Week
Connection Type
Three-Four Wired
Contact Type
Normally Open (NO)
Enclosure Type NEMA
Type2
Sensor Type
Resistance sensor
Number of Batteries
0
Power Consumption (@Pcons)
Standby 0.05 W
Power Supply Type
External
Design Range
Saga
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
71 mm
Product Net Height
41 mm
Product Net Depth / Length
71 mm
Product Net Weight
0.203 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] TC16-20-916
E-Number (Finland)
2619490
E-Number (Norway)
5469045
E-Number (Sweden)
8580709
Environmental Product Declaration - EPD
EPD for Combination thermostat
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
954bed9e-4a92-4f96-a708-5d74768ada1b Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat ENG | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat FI | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat SWE
ETIM 9
EC011309 - Room clock thermostat
The thermostat’s low insert depth of 20 mm makes it practical for cramped control panels, delivering a full 1 gang digital thermostat without sacrificing performance, so installation in compact automation cabinets is simpler and faster. This reduces retrofit costs and panel redesign while maintaining IP21 protection and CE compliance. Pre-programmed operation and seven switching programs streamline setup, cutting commissioning time and minimizing operator errors in busy production lines. With 230 V AC supply and three-four wired connections, plus a normally open contact rated up to 16 A at 250 V AC, wiring in standard automation cabinets is straightforward and dependable. Standby power of just 0.05 W and external control via EXT connector support energy efficiency and remote management. Saga design elements and a white RAL 9003 finish ensure visual compatibility in modern panels, while dimensions and weight keep enclosure requirements predictable. Compliance with RoHS, REACH, SCIP, and WEEE demonstrates a commitment to sustainable manufacturing and regulatory alignment. These features collectively reduce maintenance downtime, support consistent process temperatures, and enable scalable deployment across multiple panels and lines.
Get a Quick Quote for a ABB 2TKA00005246
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00005246?
Enquire Now
FAQs
Install in a three or four wire system with 230 V AC supply. Use the normally open output and connect 1.5–4 mm² conductors. The device fits a 1 gang footprint with a mounting depth of 20 mm, suitable for Saga design panels and IP21 environments.
Power supply is 230 V AC ±10% at 50 Hz. It provides a normally open NO output, with switching current up to 16 A at 250 V AC. Wiring uses 1.5–4 mm² conductors, and standby power is 0.05 W.
Yes. It carries CE conformity declarations, RoHS compliance, and REACH documentation, plus SCIP, WEEE categorization, and EPD declarations for responsible material use and end-of-life handling.
Ideal for control cabinets and panel climates in automation environments, especially where space is at a premium. Its external EXT control and week clock interval support remote scheduling and flexible operation in Saga-design enclosures.
Pre-programmed seven switching programs shorten commissioning time, while low standby power reduces ongoing energy use. The robust IP21 rating, CE/RoHS/REACH compliance, and durable 1 gang format deliver predictable lifecycle costs and easier, cost-effective panel upgrades.
