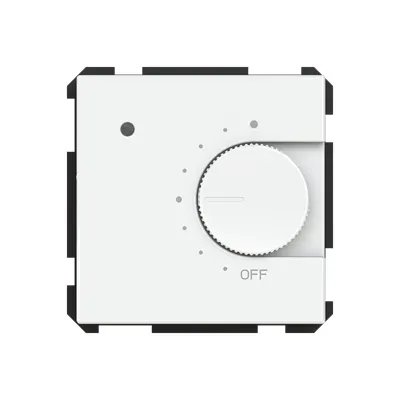

ABB 2TKA00005260 Combination thermostat - 230V 16A, IP21
Part Number: 2TKA00005260
Quick Summary
ABB 2TKA00005260 is a Bluetooth thermostat for precise room and floor temperature control. For facilities facing uneven heat distribution and high energy costs, accurate targeting matters. This model offers IP21 protection, CE conformity, and REACH compliance, with an EPD for Nordic Bluetooth Thermostat. It supports room, floor, and combined modes, plus wireless connectivity and a 230V/50Hz supply. Designed to work with ABBEcoHeat app, it helps reduce operating costs while improving comfort.
Product Information
Extended Description
2TKA00005260 ABB: Bluetooth thermostat with floor sensor for room specific temperature adjustment. 230V / 50Hz / 16A / IP21 / Impressivo White. The thermostat can work in floor mode, room mode, combination mode or power controlling mode. Can be used together with ABBEcoHeat mobile app.
Instructions and Manuals
Installation Instruction (.PDF) [XX] Bluetooth Thermostat TB16-23 | Manual (.PDF) [XX] Bluetooth Thermostat TB16-23
Degree of Protection
IP21
Temperature Class Default
I
Measuring Range
5 … 35 °C
Number of Outputs
Heater 1 | Cooler 0
Operating Mode
Turn
Device Clock Interval
Week
Connection Type
Wireless
Contact Type
Normally Open (NO)
Sensor Type
Resistance sensor
Power Consumption (@Pcons)
Standby 0.5 W
Power Supply Type
External
Design Range
Impressivo
RAL Number
RAL 9016 - Traffic White
Color
White
Product Net Width
70 mm
Product Net Height
70 mm
Product Net Depth / Length
41 mm
Product Net Weight
0.109 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] TB16-23-8x
E-Number (Finland)
2619431
E-Number (Norway)
5469041
E-Number (Sweden)
8580700
Environmental Product Declaration - EPD
EPD for Nordic Bluetooth Thermostat
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
26d475e3-7f85-4941-904c-600995207f18 Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat ENG | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat FI | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat SWE
ETIM 9
EC011309 - Room clock thermostat
Wireless Bluetooth connectivity enables quick setup and remote monitoring, reducing on-site labor and enabling rapid firmware updates. By integrating with ABBEcoHeat app, engineers can fine-tune schedules and monitor energy usage across buildings, improving overall energy performance and occupant comfort. IP21 protection provides reliable operation in typical indoor environments, lowering service calls due to ingress while supporting installation in offices, retail spaces, and light industrial settings. The thermostat offers room, floor, combination, and power-controlling modes, allowing precise climate management for underfloor heating and radiant spaces with minimal wiring and disruption. Its compact 70x70 mm profile, NO contact, and 230V supply simplify retrofit into standard back boxes, speeding up projects and reducing installation costs. Compliance with CE, REACH, and WEEE, along with the Nordic EPD, helps meet regulatory requirements while delivering measurable sustainability gains and long-term cost savings.
Get a Quick Quote for a ABB 2TKA00005260
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00005260?
Enquire Now
FAQs
ABB 2TKA00005260 is designed for retrofit and new-build projects. It uses a compact 70x70 mm faceplate and a normally open NO contact, simplifying mounting into standard back boxes. The device supports floor and room modes and communicates wirelessly, reducing cabling complexity and on-site labor while delivering precise temperature control for underfloor heating systems.
Key specs include 230V mains supply at 50 Hz, 16A switching capacity, IP21 protection, a resistance sensor, and a 5–35 °C measuring range. Wireless connectivity enables remote monitoring and scheduling via ABBEcoHeat, making it suitable for offices, retail, and light industrial environments where consistent comfort and energy savings matter.
Yes. The thermostat is designed to work with ABBEcoHeat, allowing remote control, scheduling, and monitoring. This compatibility enables centralized management of climate settings across multiple zones, reduces manual adjustments, and supports data-driven energy optimization in smart building projects.
The device carries CE conformity, REACH compliance, and WEEE classification, with an Environmental Product Declaration (EPD) for Nordic Bluetooth Thermostat. It also references ECU-related declarations and CMRT considerations, supporting regulatory requirements and sustainable procurement practices for European markets.
By enabling precise room and floor control and supporting energy management via ABBEcoHeat, the thermostat can reduce unnecessary heating, lower energy bills, and extend system life through smoother operation. Its low standby power (0.5 W) and robust environmental rating help minimize maintenance needs and downtime in commercial installations.
