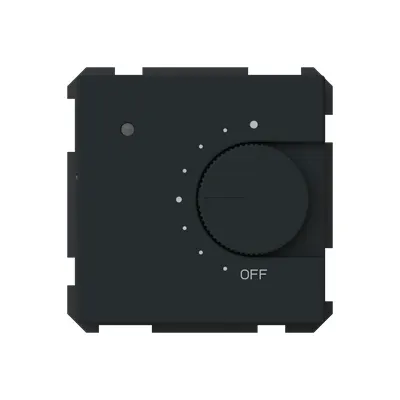

ABB 2TKA00005262 Thermostat - Impressivo IP21
Part Number: 2TKA00005262
Quick Summary
ABB 2TKA00005262 Bluetooth thermostat provides precise room and floor heating control for spaces. Too often, occupants experience hot or cold spots and operators face wasted energy due to misaligned schedules. The device carries CE, RoHS, REACH declarations and IP21 protection, supporting safe installation in most environments. Compatible with ABBEcoHeat and offering floor, room, and combination modes, it tailors comfort to occupancy while simplifying commissioning. This enables energy efficiency, fewer manual adjustments, and streamlined facility management for modern commercial and residential projects. Wireless connectivity and a user-friendly app interface accelerate acceptance, maintenance, and ongoing optimization.
Product Information
Extended Description
2TKA00005262 ABB: Bluetooth thermostat with floor sensor for room specific temperature adjustment. 230V / 50Hz / 16A / IP21 / Impressivo Matt Black.The thermostat can work in floor mode, room mode, combination mode or power controlling mode. Can be used together with ABBEcoHeat mobile app.
Instructions and Manuals
Installation Instruction (.PDF) [XX] Bluetooth Thermostat TB16-23 | Manual (.PDF) [XX] Bluetooth Thermostat TB16-23
Degree of Protection
IP21
Temperature Class Default
I
Measuring Range
5 … 35 °C
Number of Outputs
Heater 1 | Cooler 0
Operating Mode
Turn
Device Clock Interval
Week
Connection Type
Wireless
Contact Type
Normally Open (NO)
Sensor Type
Resistance sensor
Power Consumption (@Pcons)
Standby 0.5 W
Power Supply Type
External
Design Range
Impressivo
RAL Number
RAL 9005 - Jet Black
Color
Black
Product Net Width
70 mm
Product Net Height
70 mm
Product Net Depth / Length
41 mm
Product Net Weight
0.110 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] TB16-23-8x
E-Number (Finland)
2619432
E-Number (Norway)
5469042
E-Number (Sweden)
8580702
Environmental Product Declaration - EPD
EPD for Nordic Bluetooth Thermostat
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat ENG | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat FI | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat SWE
ETIM 9
EC011309 - Room clock thermostat
Feature: Wireless Bluetooth connection enables remote setup and monitoring, reducing on-site visits and speeding commissioning. Business Impact: lowers labor costs and accelerates rollout for multi-site projects. Application: ideal for offices, clinics, and industrial facilities that require fast, scalable temperature control. Feature: Floor and room mode capability delivers precise comfort aligned to occupancy and scheduling. Business Impact: reduces over-heating and under-heating, cutting energy waste. Application: effective in spaces with mixed-use zones or variable occupancy patterns. Feature: External 230V power supply with a single normally open output (NO) provides straightforward integration into existing heating circuits. Business Impact: simplifies wiring and improves fault tolerance for single-source heating systems. Application: retrofit and new-build projects where a single heater control point is required. Feature: IP21-rated enclosure and Impressivo matte black design (RAL 9005) offer durable, aesthetically pleasing installation options. Business Impact: enables reliable operation in typical indoor environments while maintaining a premium look. Application: commercial interiors and residential retrofits where appearance matters. Feature: 5–35 °C measuring range with a week-minute device clock and ABBEcoHeat app compatibility offers flexible scheduling. Business Impact: supports precise setpoint control and energy-aware operation. Application: climate management for offices, clinics, and smart-building integrations. Feature: RoHS, REACH declarations, and EPD documentation provide compliance transparency. Business Impact: mitigates regulatory risk and supports sustainable building programs. Application: procurement for regulated projects and green certifications. Feature: Compact 70x70x41 mm footprint and 0.110 kg weight simplify mounting and serviceability. Business Impact: reduces installation time and facilitates replacement in crowded panels. Application: new builds and refurbishments where space is at a premium.
Get a Quick Quote for a ABB 2TKA00005262
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00005262?
Enquire Now
FAQs
Begin by consulting the Installation Instructions for TB16-23. Ensure a 230V, 50Hz supply and external power configuration. Mount the unit in the 70x70 mm footprint, connect the resistance floor sensor if used, and wire the single heater output (NO). Finally, pair the device with the ABBEcoHeat app for room or floor mode programming.
It operates on 230V, 50Hz, with a load capacity of up to 16A and a single heater output (Normally Open). The measuring range is 5–35 °C, with wireless (Bluetooth) connection, Week clock interval, and IP21 protection. The design uses an external power supply and a resistance sensor for accurate control.
Yes. It supports floor mode, room mode, and a combination mode, enabling precise temperature control for zones or whole spaces. Its app compatibility with ABBEcoHeat allows centralized management across multiple rooms or floors, improving occupant comfort and reducing energy use in offices, clinics, and retail environments.
The device carries CE declarations of conformity, RoHS compliance, REACH declarations, and an Environmental Product Declaration (EPD) for Nordic Bluetooth Thermostat usage. WEEE categorization aligns with small equipment guidelines, aiding compliant end-of-life disposal.
Benefits include reduced manual adjustments, better alignment with occupancy, and enhanced energy efficiency through precise temperature control. App-based monitoring and scheduling accelerate commissioning, minimize energy waste, and simplify facility management across multiple sites, delivering measurable cost savings over time.
