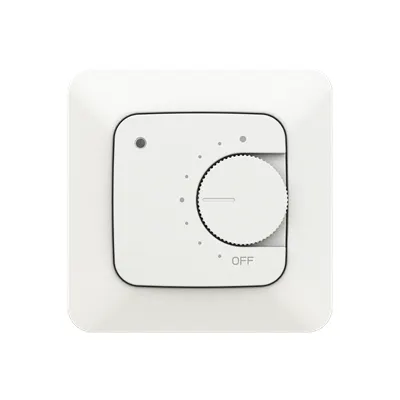

ABB 2TKA00005264 Bluetooth Thermostat - IP21 Protection
Part Number: 2TKA00005264
Quick Summary
ABB Bluetooth thermostat 2TKA00005264 delivers precise room and floor temperature control for modern spaces. Engineers and facility managers often wrestle with heat overshoot, manual adjustments, and mismatched systems that drain energy and raise costs. The device carries CE declarations, RoHS information, REACH declarations, and an EPD to support safety, regulatory compliance, and environmental responsibility in Nordic and other markets. With ABB EcoHeat app compatibility and a compact frame, installation is straightforward and remote management is possible, delivering measurable efficiency, reliability, and total cost of ownership benefits for both commercial and residential projects.
Product Information
Extended Description
2TKA00005264 ABB: Bluetooth thermostat with floor sensor for room specific temperature adjustment. 230V / 50Hz / 16A / IP21 / Jussi, including frame. The thermostat can work in floor mode, room mode, combination mode or power controlling mode. Can be used together with ABBEcoHeat mobile app.
Degree of Protection
IP21
Temperature Class Default
I
Measuring Range
5 … 35 °C
Number of Outputs
Heater 1 | Cooler 0
Operating Mode
Turn
Device Clock Interval
Week
Connection Type
Wireless
Contact Type
Normally Open (NO)
Sensor Type
Resistance sensor
Power Consumption (@Pcons)
Standby 0.5 W
Power Supply Type
External
Design Range
Jussi
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
85 mm
Product Net Height
85 mm
Product Net Depth / Length
41 mm
Product Net Weight
0.120 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] TB16-23-214
Environmental Product Declaration - EPD
EPD for Nordic Bluetooth Thermostat
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat ENG | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat FI | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat SWE
ETIM 9
EC011309 - Room clock thermostat
Feature: Wireless connection and ABB EcoHeat app compatibility → Business Impact: Enables remote monitoring, control, and scheduling, reducing on-site visits and enabling energy-saving strategies across multiple zones. Application: Office buildings and multi-room setups where centralized control improves comfort and reduces operating expenses. Feature: Measuring range 5 … 35 °C and room or floor mode → Business Impact: Accurate, site-specific temperature control minimizes overshoot and fan energy, cutting energy waste by targeting only occupied areas. Application: Spaces requiring precise comfort like labs, clinics, or executive offices. Feature: One Heater output, Normally Open contact, Resistance sensor → Business Impact: Simple, reliable actuation with compatibility to standard heating circuits, lowering integration risk and spare-part needs. Application: Radiant floor systems and zone heating in retrofit or new installations. Feature: External power supply, IP21 protection, 230 V / 50 Hz → Business Impact: Safe operation in typical indoor environments with robust protection and straightforward wiring, minimizing electrical concerns. Application: Wall-mounted installations in classrooms, hotels, or light-industrial spaces. Feature: Jussi design, 85×85 mm footprint, frame included, white finish → Business Impact: Aesthetically blends with contemporary interiors and existing frames, accelerating procurement and installation timelines. Application: Renovations and new builds seeking minimal visual impact. Feature: Compliance suite (CE, RoHS, REACH, WEEE, EPD) → Business Impact: Reduces regulatory risk, supports sustainability reporting, and enables prescriptive procurement decisions. Application: Nordic projects and global rollouts requiring certified, traceable components.
Get a Quick Quote for a ABB 2TKA00005264
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00005264?
Enquire Now
FAQs
Yes. The 2TKA00005264 uses wireless connectivity and supports ABB EcoHeat app integration, making it compatible with existing ABB heating ecosystems and enabling seamless retrofits in commercial or residential environments.
The thermostat measures 5 to 35 °C and operates from a 230V, 50Hz supply with a 16A rating. It features a resistance sensor and a Normally Open contact, designed for straightforward integration with standard heating elements.
Absolutely. With floor mode and room mode, plus a compact 85×85 mm footprint and frame included, it suits small offices, apartments, and zoned floor heating while providing precise, energy-aware control.
It carries CE declarations, RoHS compliance, REACH declarations, and an EPD for Nordic markets, ensuring safety, environmental responsibility, and regulatory alignment across regions.
By leveraging wireless control, scheduling, and precise 5–35 °C regulation, users typically see reduced energy consumption and improved comfort. Remote monitoring via ABB EcoHeat minimizes on-site maintenance, while the included frame simplifies installation and reduces lifecycle costs.
