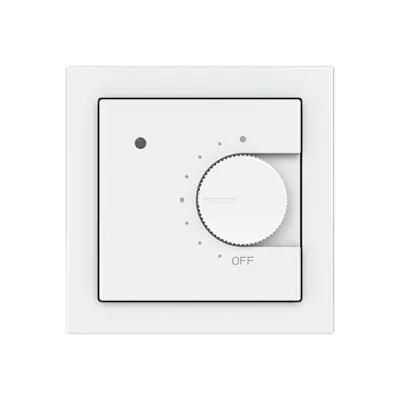

ABB 2TKA00005265 Thermostat - IP21, Bluetooth Enabled
Part Number: 2TKA00005265
Quick Summary
ABB 2TKA00005265 Thermostat is a Bluetooth-enabled climate controller for floor and room heating. This device enables precise, app-driven control of spaces where comfort and energy efficiency matter most. Many projects struggle with mismatched setpoints, delayed responses, and wasted energy when zoning isn’t precise enough. The thermostat provides IP21 protection and compliance with CE, RoHS, and REACH, plus an Nordic EPD to support sustainability reporting. With ABBEcoHeat compatibility and flexible mode options, it enables rapid deployment, accurate temperature regulation, and measurable energy savings across commercial and residential spaces, while simplifying maintenance and remote management for facilities teams.
Product Information
Extended Description
2TKA00005265 ABB: Bluetooth thermostat with floor sensor for room specific temperature adjustment. 230V / 50Hz / 16A / IP21 / Impressivo White, inluding frame. The thermostat can work in floor mode, room mode, combination mode or power controlling mode. Can be used together with ABBEcoHeat mobile app.
Degree of Protection
IP21
Temperature Class Default
I
Measuring Range
5 … 35 °C
Number of Outputs
Heater 1 | Cooler 0
Operating Mode
Turn
Device Clock Interval
Week
Connection Type
Wireless
Contact Type
Normally Open (NO)
Sensor Type
Resistance sensor
Power Consumption (@Pcons)
Standby 0.5 W
Power Supply Type
External
Design Range
Impressivo
RAL Number
RAL 9016 - Traffic White
Color
White
Product Net Width
85 mm
Product Net Height
85 mm
Product Net Depth / Length
41 mm
Product Net Weight
0.130 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] TB16-23-8x
Environmental Product Declaration - EPD
EPD for Nordic Bluetooth Thermostat
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0eb338bb-5734-4a2d-8def-983a45f2991f Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat ENG | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat FI | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat SWE
ETIM 9
EC011309 - Room clock thermostat
Wireless Bluetooth connectivity with ABBEcoHeat app reduces site visits and accelerates commissioning. Business impact: remote configuration, live status, and fault detection save labor costs; Application: hotels, offices, and housing developments seeking scalable comfort control. The device supports floor mode, room mode, and a combination mode, plus power controlling mode, enabling precise zoning for underfloor heating and room comfort, which translates to lower energy bills and improved occupant satisfaction. Measuring range of 5 … 35 °C and resistance-based sensing provide reliable room temperature data, while a single heater output with a normally open contact supports simple integration into existing circuits. The compact, frame-included design fits standard 85 mm installations, simplifying retrofits in upgraded or new-build projects. With 230V external power, standby consumption of 0.5 W and a white Impressivo finish (RAL 9016), aesthetics and reliability align for commercial deployments. RoHS, REACH, SCIP declarations, and an EPD for Nordic markets reinforce compliance and sustainability reporting, reducing procurement risk and enhancing corporate responsibility.
Get a Quick Quote for a ABB 2TKA00005265
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00005265?
Enquire Now
FAQs
The 2TKA00005265 ships with a frame included and fits standard 85 mm mounting openings. Install by connecting to the 230V supply, ensure 50 Hz operation, and place the thermostat in the desired indoor location. Use the wireless setup to pair with ABBEcoHeat, then configure Floor, Room, or Combination modes to match your zoning strategy. The NO contact output simplifies integration with one heater circuit.
It offers Floor mode, Room mode, and a Combination mode to manage heating across zones. With a 5–35 °C measuring range and a resistance sensor, it delivers accurate ambient readings for both floor-based and air-based comfort. The single heater output and robust wireless connection support flexible installation in underfloor heating and conventional room heating systems.
This thermostat carries IP21 environmental protection, CE declarations of conformity, RoHS compliance, REACH declarations, and SCIP reporting. It is designed for WEEE compliance and includes an EPD for Nordic markets. ETIM 9 classifies it as a room clock thermostat, reinforcing its suitability for professional installations in regulated environments.
Yes, the device is designed to work with the ABBEcoHeat mobile app, enabling remote configuration, live status monitoring, and fault alerts. Benefits include reduced on-site visits, faster commissioning, and continuous optimization of setpoints across zones, which translates to energy savings, improved occupancy comfort, and easier facilities management.
By enabling precise zoning, reducing standby losses (0.5 W), and leveraging remote management, the thermostat delivers measurable energy savings and lower operating costs. Its durable IP21 rating, robust certifications, and integration with existing 230V electrical infrastructure help shorten installation time and justify cost through reduced energy spend and improved occupant comfort over time.
