2TKA00005312
Part Number: 2TKA00005312
Product Information
Extended Description

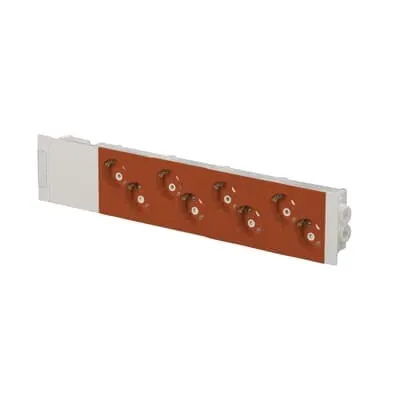

2TKA00005312 ABB: AUD14-03Prefabricated socket outlet unit, 8-gang Schuko, orange
Mounting Type
Wall duct
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Environmental Information
BVD 2TVD10029024 Socket outlet unit
Number of Phases
1
Number of Active Pin Terminals
0
Number of Gangs
8
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Impressivo
Surface Finishing
Untreated | Glossy
Material
Plastic, Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 2000 - Yellow Orange
Color
Orange
Product Net Width
0.045 mm
Product Net Height
0.085 mm
Product Net Depth / Length
0.43 mm
Product Net Weight
0.466 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] AUD14-xx
E-Number (Finland)
1406345
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK10103A2378
ETIM 9
EC000125 - Socket outlet
