2TKA00005689
Part Number: 2TKA00005689
Product Information
Extended Description

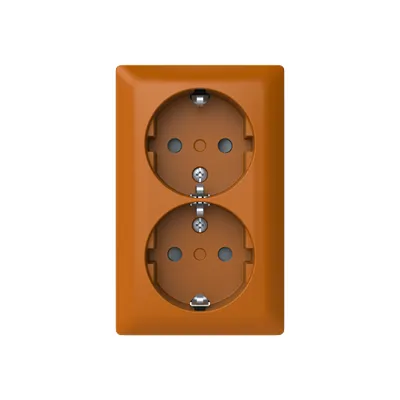

2TKA00005689 ABB: Double socket outlet with terminals for each contact of the socket outlet for max 4 rigid wires. Safety+ featured in the insert. The socket outlet color is orange.
Mounting Type
Surface mounted
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP21
Number of Phases
1
Number of Gangs
2
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO) | Earthing Pin
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 50 Hz
Design Range
Saga
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Legend
None
Label Space Provided
No
RAL Number
RAL 2000 - Yellow Orange
Color
Orange
Product Net Width
63 mm
Product Net Height
43 mm
Product Net Depth / Length
100 mm
Product Net Weight
0.101956 kg
Built-In Depth (t2)
0 mm
E-Number (Finland)
2406050
Environmental Product Declaration - EPD
Not available
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity 302 - Socket outlets ENG
ETIM 9
EC000125 - Socket outlet
