2TKA00005706
Part Number: 2TKA00005706
Product Information
Extended Description

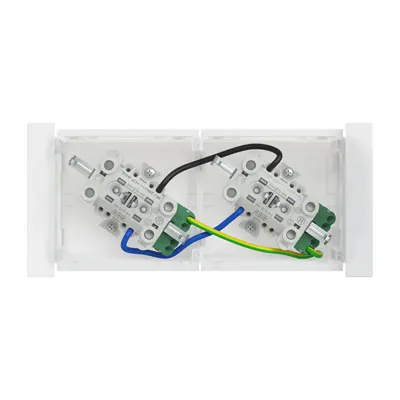

2TKA00005706 ABB: Socket outlet with terminals for each contact of the socket outlet for max 4 rigid wires. The socket outlet insert without the cover plate is screen-protected.
Instructions and Manuals
Installation instruction (.PDF) [EN] AUD12DSO
Mounting Type
Wall duct
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Number of Phases
1
Number of Gangs
4
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO) | Earthing Pin
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 50 Hz
Design Range
ProDuct
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
Legend
None
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
47 mm
Product Net Height
193 mm
Product Net Depth / Length
85 mm
Product Net Weight
0.165 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] AUD12DSO
Environmental Product Declaration - EPD
Not available
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity 302 - Socket outlets ENG
ETIM 9
EC000125 - Socket outlet
