2TKA000133G1
Part Number: 2TKA000133G1
Product Information
Extended Description

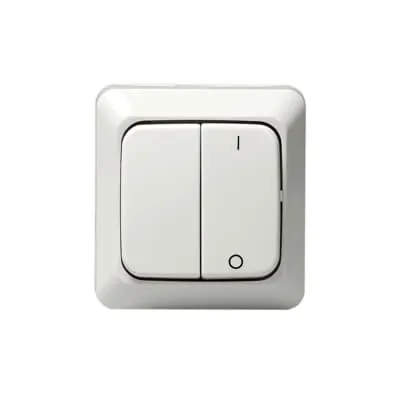

2TKA000133G1 ABB: Surface mounting switch with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid wires.
Mounting Type
Surface mounted
Type of Fastening
Screw
Degree of Protection
IP21
Number of Rocker Switches
3
Wiring Configuration
Switch 2+1
Actuator Type
Rocker/button
Connection Type
Push-In
Lamp Type
Not included
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Maximum Switching Current
Fluorescent Lamps 16 A
Design Range
Jussi
Surface Finishing
Untreated | Glossy
Material
Plastic, Thermoplastic
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
72 mm
Product Net Height
40.00 mm
Product Net Depth / Length
70.00 mm
Product Net Weight
0.072 kg
Built-In Depth (t2)
18 mm
E-Number (Norway)
1414548
E-Number (Sweden)
1817179
Environmental Product Declaration - EPD
EPD for Jussi Surface Light Switches
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f69ac24c-fe44-47c8-b01f-1c977f5f47ea Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Switches ENG
ETIM 9
EC001590 - Installation switch
