ABB Safeball 2TLA020007R3200 JSTD1 Safeball - IP67
Part Number: 2TLA020007R3200
Quick Summary
ABB Safeball is a two-handed control device for safe machine operation in industrial settings. Operators often struggle with inadvertent starts and unpredictable activations, especially in demanding environments, which can lead to injuries or downtime. This Safeball carries CE, UKCA, and SEMKO certifications and IP67 protection, pairing rugged reliability with formal safety compliance. With a 24 VDC rating, a 2 N activation force, and a durable polypropylene housing, it delivers dependable performance in automation lines. Designed to integrate with ABB Safety Products and broader safety circuits, it supports two-hand control architectures while offering practical mounting and installation advantages for busy production floors.
Product Information
Extended Description

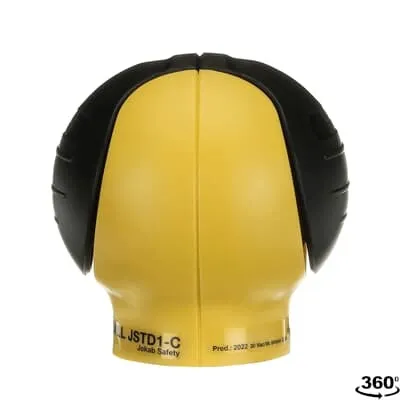

2TLA020007R3200 ABB: JSTD1-C is a Safeball with two contacts, 1NO and 1NC, and a 10 m long cable (4 conductors). Its ergonomic design provides several grip possibilities, a low activation force of approximately 2N, and flexible mounting possibilities. This model allows a maximum load of 30VDC, 2A resistive. It offers an IP67 protection degree. Its body is made of polypropylene.
Safeball is an ergonomic control device consisting of a spherical ball containing two pushbuttons, one on each side of the ball. Both buttons must be pressed in order to start and operate the machine. The risk of unintentional activation is thereby minimized
Usually two Safeball are used together to form a two-hand control, and the operator must press all four push buttons simultaneously in order to operate the machine. If one or more of the buttons are released, a stop signal is given to the machine.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536201090
Product Main Type
JSTD1
Product Name
Safeball
Function
One- and two-hand device
Status Indicator
No
Data Sheet, Technical Information
ABB Safety Products catalog
Instructions and Manuals
Safeball Original instructions
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Marketing Video
ABB Safety Products - Your best partner for machine safety
Cable Length
10 m
Product Net Depth / Length
72 mm
Product Net Height
71 mm
Product Net Width
72 mm
Product Net Weight
0.68 kg
Certification Agency
Inspecta
Performance Level (PL)
Up to e
B10d Value
20 million
Communication Interface
Contacts
Connection Configuration
Cable
Contacts Configuration
1 NO, 1 NC
Maximum Switching Current
Main Circuit 2000 mA
Maximum Switching Voltage
Main Circuit 30 V
Number of Contacts NC
1
Number of Contacts NO
1
Rated Operational Current DC-12 (Ie)
(24 V) 0.02 A
Rated Operational Voltage
24 V DC
Enclosure Type UL/CSA
1
Ambient Air Temperature
Operation -25 ... 50 °C
Degree of Protection
IP67
Material
Housing:Polypropylene | Cable: PVC
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Safety Products
RoHS Information
RoHS - Safety Products
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Safety Products
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EC Declaration of conformity JSTD1 Safeball, JSTD25, JSTD20
Declaration of Conformity - UKCA
UK DoC - JSTD1, JSTD25
SEMKO Certificate
Type Certificate - JSTD1 A/B/C/E
Package Level 1 Units
box 1 piece
Package Level 1 Width
0.25 m
Package Level 1 Depth / Length
0.225 m
Package Level 1 Height
0.09 m
Package Level 1 Gross Weight
1.54 kg
Package Level 1 EAN
7350024460216
eClass
V11.0 : 27371238
ETIM 7
EC002571 - Agreement switch
ETIM 8
EC002571 - Agreement switch
ETIM 9
EC002571 - Agreement switch
IDEA Granular Category Code (IGCC)
3584 >> Safety Control Module
UNSPSC
32151802
Object Classification Code
B
E-Number (Finland)
2307377
E-Number (Sweden)
3861304
Feature → Business Impact → Application: 2 contacts (1 NO, 1 NC) enable a dedicated start/stop logic, reducing inadvertent machine starts and improving operator safety in line startups, robotic cells, and packaging lines. This translates to lower risk exposure and improved regulatory compliance in safety-critical applications. Feature → Business Impact → Application: 10 m cable with 4 conductors provides flexible reach across machines and workstations, enabling safer two-hand operation without rework. Application: assembly lines, presses, or transfer systems where reach and safety clearance matter. Feature → Business Impact → Application: IP67 enclosure and polypropylene housing deliver superior ingress protection and chemical resistance, reducing maintenance downtime and extending service life in wash-down areas or dusty environments. Application: food, beverage, and automotive manufacturing environments. Feature → Business Impact → Application: Low activation force of approximately 2 N minimizes operator strain during repetitive sequences, boosting productivity and reducing fatigue in high-cycle safety procedures. Application: ergonomic safety stations and continuous production cycles. Feature → Business Impact → Application: 24 V DC rated operational voltage and 2000 mA main switching current provide robust performance within standard safety circuits, supporting reliable integration with safety relays and controllers. Application: modern machine safety architectures and PLC-controlled lines. Feature → Business Impact → Application: Compact 72 × 71 × 72 mm form factor and 0.68 kg weight simplify mounting on compact panels or safeguarding enclosures, enabling easier retrofits and space-efficient installations. Application: retrofit projects and space-constrained applications. Feature → Business Impact → Application: Compliance data (CE/UKCA/SEMKO) and IP67 rating reduce validation time for audits and shorten time-to-production for safety installations. Application: regulated industries and multi-site deployments.
Get a Quick Quote for a ABB 2TLA020007R3200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TLA020007R3200?
Enquire Now
FAQs
The JSTD1 Safeball uses a 4-conductor cable with a 10 m length and provides 1 NO and 1 NC contact configuration, ideal for two-hand start/stop logic. It integrates with safety relays and PLCs that support two-hand control, and its IP67 enclosure allows mounting near harsh machinery without additional enclosure around the device.
Key specs include a 24 V DC rated operational voltage, a main switching current up to 2000 mA, and a maximum switching voltage of 30 V. The device provides 1 NO and 1 NC contacts, with a low 2 N activation force, enabling reliable actuation with minimal operator effort.
Yes. The IP67 rating and polypropylene housing with PVC cable are designed for demanding environments, including dust and wash-down scenarios. It’s well-suited for manufacturing lines, packaging, and material handling where robust ingress protection and two-hand operation are required.
The JSTD1 Safeball carries CE DoC and UKCA DoC, plus a SEMKO Type Certificate, underscoring compliance with European and UK safety requirements. It also aligns with RoHS/REACH and WEEE conventions for responsible product stewardship.
By enabling two-hand safety control, the device reduces accidental starts and associated downtime. Its rugged IP67 construction lowers service calls, and the 10 m cable simplifies installations across multiple stations, contributing to faster commissioning and lower maintenance costs over the product lifecycle.
