ABB 2TLA020007R3400 Safeball - IP67, 24V DC, 2NO/1NC
Part Number: 2TLA020007R3400
Quick Summary
ABB Safeball JSTD1-E is an ergonomic two-hand control device designed to start machinery only when both pushbuttons are pressed, ideal for enclosure-based safety circuits. In busy production lines, operators face risks of unintended starts; this device mitigates that by requiring simultaneous actuation across two hands, helping meet machine guarding and risk assessment requirements. The unit is IP67 protected, uses a polypropylene housing with a PVC cable, and supports a 24 V DC control circuit with 2 NO contacts. It carries CE and UKCA declarations, SEMKO Type Certificate, and RoHS/REACH compliance, underscoring its suitability for regulated environments and long-term service in harsh conditions. With a compact footprint, a 0.2 m cable, and compatibility with control PLCs, it accelerates commissioning, reduces wiring effort, and improves maintenance planning for safety-critical machines.
Product Information
Extended Description
2TLA020007R3400 ABB: JSTD1-E is a Safeball with two contacts, 2 NO, and 4 wires, 0.2m, for direct connection into an enclosure. Its ergonomic design provides several grip possibilities, a low activation force of approximately 2N, and flexible mounting possibilities. This model allows a maximum load of 30VDC, 2A resistive. It offers an IP67 protection degree. Its body is made of polypropylene.

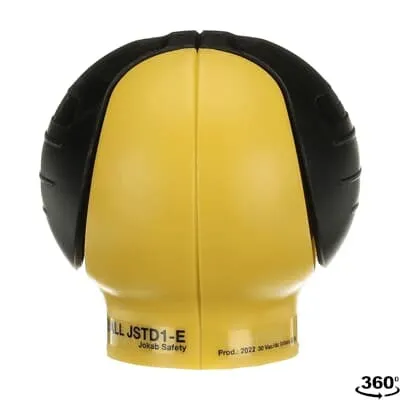

Safeball is an ergonomic control device consisting of a spherical ball containing two pushbuttons, one on each side of the ball. Both buttons must be pressed in order to start and operate the machine. The risk of unintentional activation is thereby minimized
Usually two Safeball are used together to form a two-hand control, and the operator must press all four push buttons simultaneously in order to operate the machine. If one or more of the buttons are released, a stop signal is given to the machine.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536201090
Product Main Type
JSTD1
Product Name
Safeball
Function
One- and two-hand device
Status Indicator
No
Data Sheet, Technical Information
ABB Safety Products catalog
Instructions and Manuals
Safeball Original instructions
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Marketing Video
ABB Safety Products - Your best partner for machine safety
Cable Length
0.2 m
Product Net Depth / Length
72 mm
Product Net Height
71 mm
Product Net Width
72 mm
Product Net Weight
0.07 kg
Certification Agency
Inspecta
Performance Level (PL)
Up to e
B10d Value
20 million
Communication Interface
Contacts
Connection Configuration
Cable
Contacts Configuration
2 NO, 0 NC
Maximum Switching Current
Main Circuit 2000 mA
Maximum Switching Voltage
Main Circuit 30 V
Number of Contacts NC
1
Number of Contacts NO
1
Rated Operational Current DC-12 (Ie)
(24 V) 0.02 A
Rated Operational Voltage
24 V DC
Enclosure Type UL/CSA
1
Ambient Air Temperature
Operation -25 ... 50 °C
Degree of Protection
IP67
Material
Housing:Polypropylene | Cable: PVC
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Safety Products
RoHS Information
RoHS - Safety Products
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Safety Products
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EC Declaration of conformity JSTD1 Safeball, JSTD25, JSTD20
Declaration of Conformity - UKCA
UK DoC - JSTD1, JSTD25
SEMKO Certificate
Type Certificate - JSTD1 A/B/C/E
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm
Package Level 1 Depth / Length
75 mm
Package Level 1 Height
105 mm
Package Level 1 Gross Weight
0.095 kg
Package Level 1 EAN
7350024460223
eClass
V11.0 : 27371238
ETIM 7
EC002571 - Agreement switch
ETIM 8
EC002571 - Agreement switch
ETIM 9
EC002571 - Agreement switch
IDEA Granular Category Code (IGCC)
3584 >> Safety Control Module
UNSPSC
32151802
Object Classification Code
B
E-Number (Finland)
2307378
Feature: Ergonomic Safeball two-hand design with two NO contacts. Benefit: Reduces the risk of accidental startup by requiring simultaneous activation, enhancing operator safety in high-risk environments. Application: Ideal for enclosure-based safety circuits in packaging, conveyors, and automation lines. The design translates to tangible business value through fewer production interruptions and improved compliance with safety standards. Feature: IP67 protection and polypropylene housing with PVC cable. Benefit: Ensures reliable operation in dusty, wet, or washdown environments, lowering maintenance costs and extending service life. Application: Suitable for harsh factory floors and outdoor installations where environmental exposure is a concern. Feature: 24 V DC control circuit with 2 NO contacts and 30 V main switching capability. Benefit: Aligns with common PLCs and safety relays, enabling straightforward integration and robust control logic. Application: Used in machine guarding circuits and safety interlocks across a range of industrial lines. Feature: 0.2 m cable length and cable configuration. Benefit: Simplifies enclosure wiring and panel layout, reducing installation time and potential wire management issues. Application: Quick-to-wire supplementary starts in compact control enclosures. Feature: CE, UKCA, SEMKO certifications plus RoHS/REACH compliance. Benefit: Supports regulatory compliance and risk management, easing audits and supplier qualification. Application: Suitable for regulated manufacturing environments requiring traceable conformity and sustainability considerations. Feature: Compact form factor and materials suitable for enclosure mounting. Benefit: Enables flexible placement and easier retrofits, lowering total cost of ownership. Application: Retrofit projects and new builds where space is at a premium.
