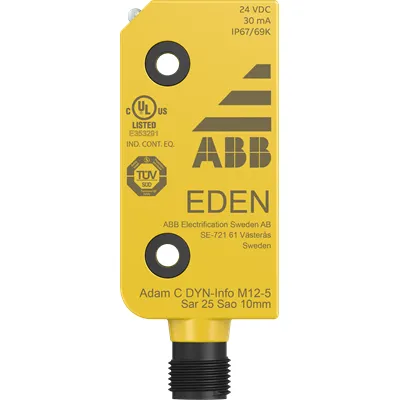

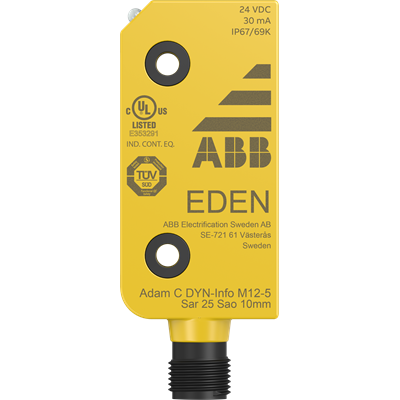

ABB 2TLA020051R5101 Eden Sensor - DYNlink IP67
Part Number: 2TLA020051R5101
Quick Summary
Eden Sensor provides non-contact safety interlocking for automation lines using DYNlink in Eden systems. Many manufacturers struggle with wear and downtime when traditional mechanical interlocks fail to deliver reliable signals. This device delivers SIL 3 safety integrity and PL e performance with IP67/IP69K protection, backed by CE, UKCA, UL/cULus, and TÜV certifications for global compliance. Designed for seamless ABB Eden integration, it helps reduce maintenance costs while enhancing machine safety and data integrity across harsh environments. In busy production environments, this sensor supports predictable uptime and traceable safety signaling, while offering robust information outputs that streamline diagnostics and safety audits.
Product Information
Extended Description
2TLA020051R5101 ABB: Adam safety sensor with DYNlink signal and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. 4 pcs of DA 1B distance plates and 4 pcs of DA 2B distance rings are included. Coated PCBA for extra protection in demanding environments.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536508090
Product Main Type
Eden
Product Name
Sensor
Function
Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
Sub-Function
Info signal
Status Indicator
Yes
Data Sheet, Technical Information
Eden flyer
Data Sheet, Technical Information (Part 2)
2TLC172209D0201
Instructions and Manuals
Eden DYN - Product Manual
Marketing Video
Sentry and Eden | ABB Safety Products - Your best partner for machine safety
Product Net Depth / Length
12 mm
Product Net Height
75.2 mm
Product Net Width
30 mm
Product Net Weight
0.026 kg
Certification Agency
cCSAus
Safety Category
4
Performance Level (PL)
Up to e
Safety Integrity Level (SIL)
3
Communication Interface
DYNlink
Connection Configuration
M12-5 male
Number of Outputs
Non-Failsafe, Undelayed Contacts 0 | Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn)
15 mm
PCB Coated
Yes
Probability of Dangerous Failure per Hour (PFDH)
4.5 10-9 hour
Rated Control Supply Voltage (Us)
24 V DC
Enclosure Type UL/CSA
4X
Ambient Air Temperature
Operation -40 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
IP67 | IP69K
Material
Housing: Plastic (PBT) | Coating housing: Uncoated | Moulding: Epoxy
Operating Humidity (RHamb)
35 to 95%
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Safety Products
RoHS Information
RoHS - Safety Products
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Safety Products
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cULus Certificate
UL certificate - Eden DYN
Declaration of Conformity - CE
EC Declaration of conformity - Eden DYN
Declaration of Conformity - UKCA
UK DoC - Eden DYN
TÜV Certificate
TUV Certificate - Eden DYN
UL Certificate
UL certificate - Eden DYN
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.016 m
Package Level 1 Depth / Length
0.075 m
Package Level 1 Height
0.075 m
Package Level 1 Gross Weight
0.052 kg
Package Level 1 EAN
7350024486599
eClass
V11.0 : 27272402
ETIM 7
EC002544 - Magnetic proximity switch
ETIM 8
EC002544 - Magnetic proximity switch
ETIM 9
EC002544 - Magnetic proximity switch
UNSPSC
39122221
Object Classification Code
B
E-Number (Sweden)
3834855
Feature → Business Impact → Application: The Eden Sensor uses DYNlink signaling and an Info output to deliver fast, reliable interlock information with a 24 V DC supply, enabling safer machine control and easier integration with Eva actuators. Impact: Reduces downtime and wear on moving parts, improves fault detection, and provides traceable safety data for audits. Application: Suitable for packaging, automotive, and metalworking lines where non-contact safety interlocks are preferred. Feature → Business Impact → Application: IP67/IP69K rated housing with a coated PCB withstands harsh washdowns and wide temperature ranges, decreasing failure rates and maintenance cycles. Impact: Lower total cost of ownership and longer service life. Application: Washdown environments and high-humidity plants. Feature → Business Impact → Application: 15 mm sensing distance with a single non-failsafe semiconductor output simplifies wiring and PLC integration, reducing configuration time. Impact: Faster commissioning and clearer safety signaling paths. Application: Safety circuits where a dedicated interlock signal is required. Feature → Business Impact → Application: Compact M12-5 male connection and included mounting accessories (4 DA 1B plates, 4 DA 2B rings) enable quick installation. Impact: Accelerated deployments and consistent mounting across machines. Application: New line installations and retrofits. Feature → Business Impact → Application: Compliance-ready certifications (CE, UKCA, UL/cULus, TÜV) and documented PFDH/SIL levels support safety audits and regulatory adherence. Impact: Less risk during certification processes and smoother customer approvals. Application: Industries with strict regulatory requirements.
Get a Quick Quote for a ABB 2TLA020051R5101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TLA020051R5101?
Enquire Now
FAQs
Yes. The Eden Sensor is designed to pair with Eva actuators within the Eden safety ecosystem. It uses a 24 V DC supply and an M12-5 male connector for straightforward wiring. Included mounting accessories (DA distance plates and rings) speed alignment, while the 12 mm depth keeps the device compact on crowded assemblies. Ensure correct polarity and follow the Eden product manual during installation.
Key figures include a 15 mm sensing distance, one non-failsafe semiconductor output, and a coated PCB for harsh environments. The unit supports PL e and SIL 3, with an IP67/IP69K rating. It operates at 24 V DC and uses DYNlink for information output, enabling reliable signaling to safety controllers and minimizing false trips in demanding lines.
Yes. It is rated IP67 and IP69K, with operation from -40 to 70 °C and 35–95% RH, making it suitable for washdown zones and hot/cold spots in many facilities. It is particularly well-suited for packaging and metalworking lines where frequent cleaning and exposure to humidity occur, while maintaining signal integrity and safety compliance.
The Eden Sensor carries CE, UKCA, UL/cULus, and TÜV certifications, with documented SIL 3 and PL e performance. It also aligns with RoHS, REACH, CMRT, and TSCA declarations. This broad certification portfolio supports regulatory audits and customer qualifications across global plants, helping accelerate supplier qualification and minimizing compliance-related delays.
The non-contact design reduces mechanical wear and tear, lowering maintenance intervals and replacement costs. A coated PCBA enhances reliability in challenging environments, while isolation of the safety signal and a single semiconductor output simplify diagnostics. Combined with quick installation and ABB Eden compatibility, this sensor delivers predictable uptime and improved safety ROI on high-throughput lines.
