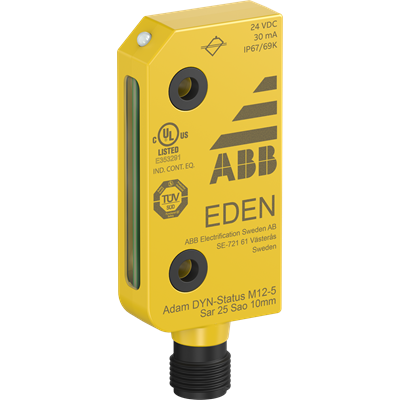

ABB 2TLA020051R5200 Safety Sensor - UL/CE Certified
Part Number: 2TLA020051R5200
Quick Summary
The Eden safety sensor is a non-contact interlock device used for guard doors and safe-position monitoring. It eliminates wear from mechanical interlocks and minimizes downtime caused by misalignment and contact wear, delivering reliable protection with fewer maintenance cycles. With UL and CE approvals, TÜV Süd certification, and IP67/IP69K protection, it meets demanding industrial standards. Designed to work with EVA actuators via DYNlink, Eden enables seamless, wear-free safety sensing, while offering 360° mounting flexibility and a compact footprint that reduces enclosure clutter and enables faster machine safeguarding for OEMs and integrators.
Product Information
Extended Description
2TLA020051R5200 ABB: Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.
Adam safety sensor with DYNlink signal and StatusBus. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.
Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.
Eden is UL approved for use in US and Canada.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536508090
Product Main Type
Eden
Product Name
Sensor
Function
Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
Sub-Function
StatusBus
Status Indicator
Yes
Data Sheet, Technical Information
Eden flyer
Instructions and Manuals
Eden DYN - Product Manual
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Marketing Video
Sentry and Eden | ABB Safety Products - Your best partner for machine safety
Product Net Depth / Length
12 mm
Product Net Height
75.2 mm
Product Net Width
30 mm
Product Net Weight
0.026 kg
Certification Agency
TÜV Süd
Safety Category
4
Performance Level (PL)
Up to e
Safety Integrity Level (SIL)
3
Communication Interface
DYNlink
Connection Configuration
M12-5 male
Number of Outputs
Non-Failsafe, Undelayed Contacts 0 | Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn)
15 mm
PCB Coated
No
Probability of Dangerous Failure per Hour (PFDH)
4.5 10-9 hour
Rated Control Supply Voltage (Us)
24 V DC
Enclosure Type UL/CSA
4X
Ambient Air Temperature
Operation -40 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
IP67 | IP69K
Material
Housing: Plastic (PBT) | Coating housing: Uncoated | Moulding: Epoxy
Operating Humidity (RHamb)
35 to 85% (no icing, no condensation)
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Safety Products
RoHS Information
RoHS - Safety Products
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Safety Products
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cULus Certificate
UL certificate - Eden DYN
Declaration of Conformity - CE
EC Declaration of conformity - Eden DYN
Declaration of Conformity - UKCA
UK DoC - Eden DYN
TÜV Certificate
TUV Certificate - Eden DYN
UL Certificate
UL certificate - Eden DYN
Package Level 1 Units
bag 1 piece
Package Level 1 Width
16 mm
Package Level 1 Depth / Length
75 mm
Package Level 1 Height
75 mm
Package Level 1 Gross Weight
0.052 kg
Package Level 1 EAN
7350024480313
eClass
V11.0 : 27272402
ETIM 7
EC002544 - Magnetic proximity switch
ETIM 8
EC002544 - Magnetic proximity switch
ETIM 9
EC002544 - Magnetic proximity switch
IDEA Granular Category Code (IGCC)
6147 >> Non contact sensors
UNSPSC
41111916
Object Classification Code
B
Feature → Business Impact → Application: Eden’s DYNlink and StatusBus enabled safety communication provide robust, wear-free interlocking, reducing maintenance and extending equipment life. The benefit is lower total cost of ownership and higher system availability in packaging lines or conveyors that demand continuous operation. Application: ideal for door interlocks on hazardous machinery where quick diagnostics and reliable safety signaling are essential. Feature → Business Impact → Application: M12-5 connector and 12 mm net depth offer a compact, easy-to-mount solution that fits tight enclosures and crowded control panels, cutting installation time and minimizing changes to downstream wiring. Application: suitable for retrofits and new builds in limited spaces. Feature → Business Impact → Application: SIL 3, PL e, and PFDH of 4.5×10^-9 per hour provide high-integrity safety performance, supporting compliance with stringent standards and reducing risk exposure. Application: appropriate for high-risk machine safeguarding in automation lines. Feature → Business Impact → Application: EVA actuator compatibility enables straightforward system integration with minimal re-wiring and fast commissioning. Application: common in safety interlock systems where Eden communicates over StatusBus for status reporting. Feature → Business Impact → Application: IP67/IP69K enclosure and wide operating temperature range ensure reliable performance in harsh environments, reducing failure rates and extending service intervals. Application: food, beverage, and outdoor or dirty environments where washing and cleaning are routine. Feature → Business Impact → Application: UL/CSA, CE, TÜV certifications streamline audits and regulatory compliance, reducing project risk and expediting deployment. Application: multinational manufacturing facilities with rigorous certification requirements.
Get a Quick Quote for a ABB 2TLA020051R5200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TLA020051R5200?
Enquire Now
FAQs
The Eden sensor is designed to pair with EVA actuators via DYNlink and StatusBus, using an M12-5 connector. It mounts in tight spaces (12 mm depth) while offering 15 mm sensing distance. Ensure a 24 V DC supply and proper enclosure protection (IP67/IP69K). Typical retrofit time is minimized by pre-wired harnesses and clear wiring diagrams.
Key specs include 15 mm operating distance (Sn), 24 V DC Us, IP67/IP69K enclosure, SIL 3, and PL e. PFDH is 4.5×10^-9 per hour. The device is UL/CSA and CE certified, with TÜV Süd certification support. These ratings enable use in high-risk safeguarding applications with stringent regulatory requirements.
Yes. The Eden safety sensor features IP67 and IP69K protection, enabling reliable operation in dust, water, and high-pressure wash-down conditions. It operates across -40 to 70 °C ambient and is built with rugged housing to withstand challenging environments typical in food, packaging, and outdoor automation settings.
DYNlink provides a dedicated, fast communication path between the Eden sensor and the EVA actuator, while StatusBus delivers real-time status signals. This reduces wiring complexity, enables remote diagnostics, and shortens commissioning time, which translates to faster fault isolation and improved uptime on safety-critical lines.
Because Eden operates non-contact, there is no mechanical wear, translating to longer interlock life and lower maintenance costs. The compact design, easy mounting, and robust certifications reduce installation risk and downtime, delivering faster time-to-protection and a lower total cost of ownership across multiple machine lines.
