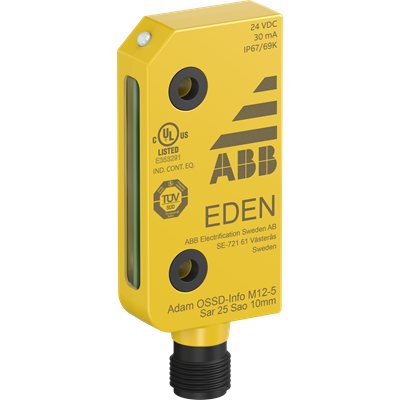

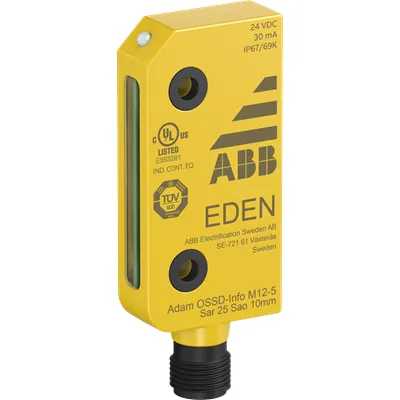

ABB 2TLA020051R5400 Sensor - UL-certified Eden OSSD
Part Number: 2TLA020051R5400
Quick Summary
ABB Eden OSSD Sensor is a non-contact safety sensor used as an interlock for doors and safe-position monitoring. Mechanical interlocks wear and introduce downtime; Eden eliminates wear by sensing presence without physical contact, improving system uptime. This device carries UL, CE, TÜV (UKCA) certifications with Safety Category 4, SIL 3, and PL e, providing regulatory confidence for US, Canada, and EU projects. With a compact 24 V DC operating profile, IP67/IP69K protection, and a straightforward M12-5 interface, it fits tight spaces and retrofit scenarios. When paired with Eva actuators, Eden enables streamlined safety architectures and reduces total cost of ownership across production lines while maintaining robust protective functions.
Product Information
Extended Description
2TLA020051R5400 ABB: Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.
Adam safety sensor with OSSD signals and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.
Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.
Eden is UL approved for use in US and Canada.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536508090
Product Main Type
Eden
Product Name
Sensor
Function
Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
Sub-Function
Info signal
Status Indicator
Yes
Data Sheet, Technical Information
Eden flyer
Data Sheet, Technical Information (Part 2)
2TLC172211D0201
Instructions and Manuals
Eden OSSD product manual
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Marketing Video
Sentry and Eden | ABB Safety Products - Your best partner for machine safety
Product Net Depth / Length
12 mm
Product Net Height
75.2 mm
Product Net Width
30 mm
Product Net Weight
0.026 kg
Certification Agency
TÜV Süd
Safety Category
4
Performance Level (PL)
Up to e
Safety Integrity Level (SIL)
3
Communication Interface
OSSD
Connection Configuration
M12-5 male
Number of Outputs
Non-Failsafe, Undelayed Contacts 0 | Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn)
15 mm
PCB Coated
No
Probability of Dangerous Failure per Hour (PFDH)
4.5 10-9 hour
Rated Control Supply Voltage (Us)
24 V DC
Enclosure Type UL/CSA
4X
Ambient Air Temperature
Operation -40 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
IP67 | IP69K
Material
Housing: Plastic (PBT) | Coating housing: Uncoated | Moulding: Epoxy
Operating Humidity (RHamb)
35 to 85% (no icing, no condensation)
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Safety Products
RoHS Information
RoHS - Safety Products
SCIP
cbbc22e5-771f-4bd3-b31a-8d28cb4437fa Sweden (SE)
Simplified SCIP
eacc2cea-59e6-4079-a330-3c9f6e3a781f Belgium (BE) | 58012b90-62cc-495b-b5db-c0b8d797eff2 Portugal (PT) | d0354346-9016-4cb7-9280-6d8c737aaedb Germany (DE) | 11d36ce9-0034-44d2-b3b9-4863fd983298 Bulgaria (BG) | 5c3ac2ee-b157-44fe-a526-bb1977b65253 Italy (IT) | f7f6fe5f-1be8-4c60-adde-e62e7151b02a Sweden (SE) | 0b85351a-1410-4b6a-a2f8-6e6d480b4289 Poland (PL) | 926e1b0a-3701-4eff-8014-da7082164e47 France (FR) | 5fa770bb-5307-41c8-b14e-e49e826c55e4 Germany (DE) | 7c8b1658-a6f7-4976-a939-7174715ecc22 France (FR) | d9f08165-b065-44bf-bba4-bf295a6246d4 Hungary (HU) | 2bca86d1-7c5b-47d0-998b-46e398aa665d Spain (ES) | fb82a091-ca5f-4bce-a992-2b604124c8e1 Belgium (BE) | 1a481684-4fdd-4ae7-8e0a-5939c56cbcb1 Germany (DE) | 682175ca-266d-4d5a-bde0-e7b76530e5d7 Poland (PL) | 982e88ec-82de-46d5-8029-abce119fae1b Norway (NO) | f087e91f-6287-4991-94f8-17878007d30b Finland (FI) | 39ba6110-d83e-49d4-8713-cf6aa3d6fdec Germany (DE) | 5a219d4d-bfec-48fa-b6c6-d28dc41b6204 Denmark (DK) | 2ef86b82-f721-44c3-b543-b07d6f5495bb Germany (DE) | 60d07686-c8f9-4a49-8ada-1c009e2ba10e Croatia (HR) | 0bec360e-f50a-4588-ac85-a4b28cd48754 Czech Republic (CZ) | 7d75357b-b82c-4a3b-9659-ac8403ce11d6 Poland (PL) | ff383906-1621-4945-a145-0db64455fa09 Netherlands (NL) | 8978e607-f10b-4387-a2db-610a0d432ae3 Hungary (HU) | cfb906ae-89f5-43d2-b16d-ce8e6deb36d6 Estonia (EE) | 94e23e2e-92ea-45c2-9ae1-80f6ae96eaf9 Greece (GR)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Safety Products
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cULus Certificate
UL certificate - Eden OSSD
Declaration of Conformity - CE
EC Declaration of conformity - Eden OSSD
Declaration of Conformity - UKCA
UK DoC - Eden OSSD
TÜV Certificate
TUV Certificate - Eden OSSD
UL Certificate
UL certificate - Eden OSSD
Package Level 1 Units
box 1 piece
Package Level 1 Width
0.016 m
Package Level 1 Depth / Length
0.075 m
Package Level 1 Height
0.075 m
Package Level 1 Gross Weight
0.052 kg
Package Level 1 EAN
7350024480337
eClass
V11.0 : 27272402
ETIM 7
EC002544 - Magnetic proximity switch
ETIM 8
EC002544 - Magnetic proximity switch
ETIM 9
EC002544 - Magnetic proximity switch
IDEA Granular Category Code (IGCC)
6147 >> Non contact sensors
UNSPSC
41111916
Object Classification Code
B
E-Number (Finland)
2314983
E-Number (Sweden)
3830215
Non-contact safety sensing using OSSD outputs reduces wear and maintenance costs, extending interlock life and minimizing unplanned downtime. This enables doors and guards to operate without mechanical contact, which is critical in high-cycle packaging lines and automated door systems. The compact form factor with a 12 mm depth and 30 mm width provides flexible mounting around machinery, enabling 360° installation options and simplifying retrofits in crowded control panels. IP67/IP69K protection and a wide operating temperature range of -40 to 70 °C ensure reliable performance in demanding environments such as automotive, food processing, and material handling. M12-5 wiring and straightforward Eva actuator compatibility reduce installation time and wiring errors, lowering commissioning costs. Certifications including UL, CE, TÜV, and UKCA support regulatory compliance and industrial acceptance across global sites. The Eden system ships with DA distance plates and DA 2B rings to accelerate accurate alignment and safe positioning, improving overall line safety and uptime. International standards alignment and compact integration make Eden a scalable choice for future-proof safety architectures.
Get a Quick Quote for a ABB 2TLA020051R5400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TLA020051R5400?
Enquire Now
FAQs
Install with the M12-5 male connector and connect to a 24 V DC supply. Use the included DA distance plates and DA 2B rings to align the Eden sensor with the Eva actuator for precise, wear-free interlocking. Mounting supports 360° orientation, enabling flexible placement around doors and gates in constrained spaces.
The device operates at 24 V DC and provides OSSD safety outputs. It features Non-Failsafe, Undelayed Contacts 0 and Non-Failsafe, Undelayed Semiconductors 1. The M12-5 connection and INFO signal output simplify wiring and integration into existing safety circuits.
Yes. The sensor is rated IP67/IP69K and operates from -40 to 70 °C, making it robust for washdown areas, automotive lines, and other demanding manufacturing environments.
The Eden OSSD Sensor is UL-listed, CE marked, TÜV certified, and UKCA compliant, with Safety Category 4, SIL 3, and PL e ratings, ensuring regulatory readiness across US, EU, and UK markets.
Eden provides wear-free, non-contact sensing that reduces maintenance and downtime, shortens commissioning time with easy installation, and delivers scalable, compliant safety architecture suitable for high-cycle applications and future upgrades.
