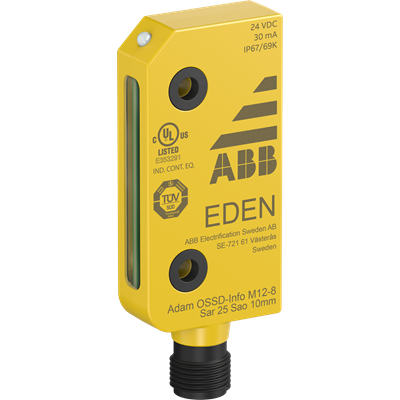

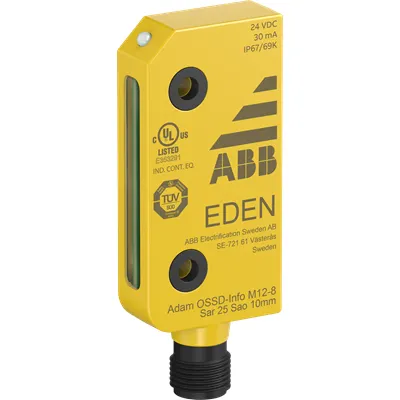

ABB 2TLA020051R5700 Sensor - TÜV UL Certified
Part Number: 2TLA020051R5700
Quick Summary
Eden OSSD sensor is a non-contact safety device used for interlocking doors and safe-position monitoring. Mechanical interlocks wear out and require frequent maintenance; Eden eliminates wear by sensing presence without contact. UL and CE declarations, TÜV Süd certification, and IP67/IP69K protection support global compliance for safe machine guarding. For OEMs, the Eden sensor reduces wiring complexity and enables reliable reporting with OSSD and info signals—improving productivity and uptime.
Product Information
Extended Description
2TLA020051R5700 ABB: Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.
Adam safety sensor with OSSD signals and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-8 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.
Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.
Eden is UL approved for use in US and Canada.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536508090
Product Main Type
Eden
Product Name
Sensor
Function
Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
Sub-Function
Info signal
Status Indicator
Yes
Data Sheet, Technical Information
Eden flyer
Data Sheet, Technical Information (Part 2)
2TLC172213D0201
Instructions and Manuals
Eden OSSD product manual
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Marketing Video
Sentry and Eden | ABB Safety Products - Your best partner for machine safety
Product Net Depth / Length
12 mm
Product Net Height
75.2 mm
Product Net Width
30 mm
Product Net Weight
0.026 kg
Certification Agency
TÜV Süd
Safety Category
4
Performance Level (PL)
Up to e
Safety Integrity Level (SIL)
3
Communication Interface
OSSD
Connection Configuration
M12-8 male
Number of Outputs
Non-Failsafe, Undelayed Contacts 0 | Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn)
15 mm
PCB Coated
No
Probability of Dangerous Failure per Hour (PFDH)
4.5 10-9 hour
Rated Control Supply Voltage (Us)
24 V DC
Enclosure Type UL/CSA
4X
Ambient Air Temperature
Operation -40 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
IP67 | IP69K
Material
Housing: Plastic (PBT) | Coating housing: Uncoated | Moulding: Epoxy
Operating Humidity (RHamb)
35 to 85% (no icing, no condensation)
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Safety Products
RoHS Information
RoHS - Safety Products
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Safety Products
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cULus Certificate
UL certificate - Eden OSSD
Declaration of Conformity - CE
EC Declaration of conformity - Eden OSSD
Declaration of Conformity - UKCA
UK DoC - Eden OSSD
TÜV Certificate
TUV Certificate - Eden OSSD
UL Certificate
UL certificate - Eden OSSD
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.016 m
Package Level 1 Depth / Length
0.075 m
Package Level 1 Height
0.075 m
Package Level 1 Gross Weight
0.052 kg
Package Level 1 EAN
7350024480368
eClass
V11.0 : 27272402
ETIM 7
EC002544 - Magnetic proximity switch
ETIM 8
EC002544 - Magnetic proximity switch
ETIM 9
EC002544 - Magnetic proximity switch
IDEA Granular Category Code (IGCC)
6147 >> Non contact sensors
UNSPSC
41111916
Object Classification Code
B
E-Number (Sweden)
3830216
Feature: Non-contact Eden OSSD safety sensing provides a wear-free interlock. Business Impact: This reduces maintenance costs and extends the life of guarding systems by eliminating mechanical wear. Application: Ideal for door interlocks and safe-position monitoring on high-cycle machines in packaging, automotive, and electronics assembly lines. Feature: Info signal output complements OSSD signals. Business Impact: Enables direct PLC feedback, improved diagnostics, and simpler wiring schemes. Application: Integrates with Eva actuators or standard ABB logic to streamline machine safety circuits. Feature: Compact form factor—12 mm depth with M12-8 male connector. Business Impact: Facilitates quick installations, minimal clearance requirements, and flexible 360° mounting options. Application: Suited for confined guarding frames, conveyors, and robotic cells. Feature: Harsh-environment resilience with IP67/IP69K and wide -40 to 70°C range. Business Impact: Delivers dependable performance in dusty, wet, or wash-down environments, reducing downtime. Application: Industrial floors, food & beverage lines, and outdoor protection enclosures. Feature: Comprehensive safety certifications including UL, CE declarations and TÜV Süd. Business Impact: Accelerates customer approvals, ensures regulatory alignment, and supports global deployments. Application: Suitable for multinational OEMs with strict compliance requirements. Feature: 15 mm sensing distance and 24 V DC control supply. Business Impact: Predictable response and reliable integration into existing safety circuits. Application: Guarding circuits in packaging, automotive, and consumer electronics manufacturing.
Get a Quick Quote for a ABB 2TLA020051R5700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TLA020051R5700?
Enquire Now
FAQs
Install the Eden sensor using the M12-8 connector and align it within the 15 mm sensing range. Mounting can be performed 360°, but ensure the Eva actuator is properly positioned to form a reliable non-contact interlock. Verify IP67/IP69K seals after installation and test safety signals in a controlled cycle.
The device operates at 24 V DC with OSSD output signaling and a non-failsafe, undelayed contact/semiconductor configuration. It uses an M12-8 male connection, provides a 15 mm sensing distance, and supports a robust IP67/IP69K enclosure suitable for harsh environments.
Yes. It is rated IP67/IP69K and operates from -40 to 70°C, making it reliable in dusty, wash-down, and temperature-extreme manufacturing settings such as automotive, food & beverage, and packaging lines.
It carries UL certificates, CE declarations, and TÜV Süd certification, with safety ratings up to SIL 3 and PL e. These certifications streamline audits and support global deployments in compliant machine guarding systems.
Eden’s non-contact sensing eliminates wear-prone mechanical interlocks, reducing maintenance and downtime. The integrated info signal simplifies wiring and diagnostics, enabling faster fault detection and safer, more reliable guarding circuits, which translates to higher uptime and lower lifecycle costs.
