ABB 2TLA020051R5701 Sensor - OSSD Info, IP69K, SIL 3
Part Number: 2TLA020051R5701
Quick Summary
ABB 2TLA020051R5701 Sensor is a non-contact safety device used for machine interlocking in harsh environments. Many facilities struggle with moisture, dust, and washdowns that shorten sensor life and uptime. This Eden safety sensor delivers SIL 3, PL e, and IP69K protection, with CE, UKCA, TÜV and UL certifications ensuring robust safety compliance. By combining a rugged M12-8 connector, coated PCBA, and integrated information output, it minimizes field maintenance while supporting scalable safety networks. For engineers, this means faster installation, fewer wiring errors, and predictable downtime—enabling safer lines and improved productivity across packaging, automotive, and general manufacturing lines.
Product Information
Extended Description

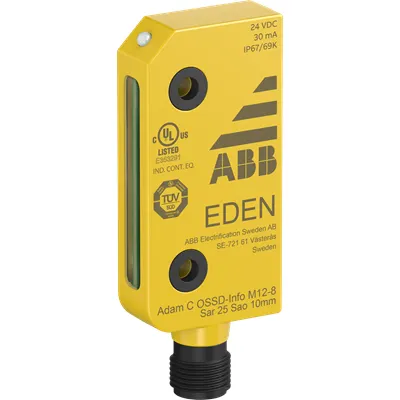

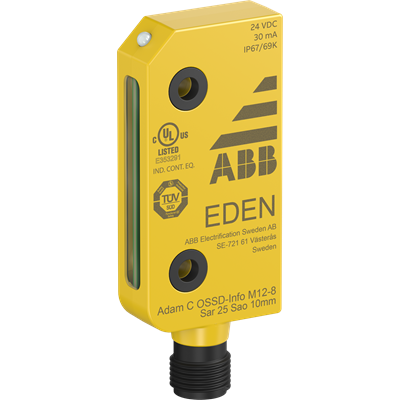

2TLA020051R5701 ABB: Adam safety sensor unit with OSSD signals and information output. M12-8 male connector, IP69K, yellow. 4pcs of DA 1B distance plates and 4pcs of DA 2B distance rings are included. Coated PCBA for extra protection in harsh environments.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536508090
Product Main Type
Eden
Product Name
Sensor
Function
Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
Sub-Function
Info signal
Status Indicator
Yes
Data Sheet, Technical Information
Eden flyer
Data Sheet, Technical Information (Part 2)
2TLC172213D0201
Instructions and Manuals
Eden OSSD product manual
Marketing Video
Sentry and Eden | ABB Safety Products - Your best partner for machine safety
Product Net Depth / Length
12 mm
Product Net Height
75.2 mm
Product Net Width
30 mm
Product Net Weight
0.026 kg
Certification Agency
cCSAus
Safety Category
4
Performance Level (PL)
Up to e
Safety Integrity Level (SIL)
3
Communication Interface
OSSD
Connection Configuration
M12-8 male
Number of Outputs
Non-Failsafe, Undelayed Contacts 0 | Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn)
15 mm
PCB Coated
Yes
Probability of Dangerous Failure per Hour (PFDH)
4.5 10-9 hour
Rated Control Supply Voltage (Us)
24 V DC
Enclosure Type UL/CSA
4X
Ambient Air Temperature
Operation -40 ... 70 °C | Storage -40 ... +70 °C
Degree of Protection
IP67 | IP69K
Material
Housing: Plastic (PBT) | Coating housing: Uncoated | Moulding: Epoxy
Operating Humidity (RHamb)
35 to 95%
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Safety Products
RoHS Information
RoHS - Safety Products
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Safety Products
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cULus Certificate
UL certificate - Eden OSSD
Declaration of Conformity - CE
EC Declaration of conformity - Eden OSSD
Declaration of Conformity - UKCA
UK DoC - Eden OSSD
TÜV Certificate
TUV Certificate - Eden OSSD
UL Certificate
UL certificate - Eden OSSD
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.016 m
Package Level 1 Depth / Length
0.075 m
Package Level 1 Height
0.075 m
Package Level 1 Gross Weight
0.052 kg
Package Level 1 EAN
7350024486636
eClass
V11.0 : 27272402
ETIM 7
EC002544 - Magnetic proximity switch
ETIM 8
EC002544 - Magnetic proximity switch
ETIM 9
EC002544 - Magnetic proximity switch
UNSPSC
39122221
Object Classification Code
B
E-Number (Sweden)
3834861
Feature: OSSD interface and non-contact safety sensing reduce mechanical wear and tear in interlock circuits. Business Impact: Lower maintenance costs, fewer trip-caused downtimes, and longer sensor life in demanding lines. Application: Suitable for high-cycle packaging and conveyor safety gates where reliability is critical. Feature: IP67/IP69K protection with a coated PCBA and wide operating range (-40 to 70 C) increases reliability in harsh wash-down and dusty environments. Business Impact: Higher uptime and predictable performance in food, beverage, and chemical processing lines. Application: Ideal for wash-down zones and outdoor installations where environmental exposure is routine. Feature: M12-8 connector with included distance plates and rings simplifies installation and mounting. Business Impact: Faster commissioning, reduced wiring errors, and easier retrofits into established Eden safety networks. Application: Quick integration into existing control cabinets and safety circuits. Feature: Safety performance with SIL 3 and PL up to e provides strong risk reduction in critical operations. Business Impact: Meets stringent safety standards while enabling leaner safety architectures. Application: Critical interlock applications on presses, cutters, and robotic work cells. Feature: Info signal output and standardized Eden safety functionality enable diagnostics and status monitoring. Business Impact: Proactive maintenance opportunities and data-driven maintenance cycles. Application: Diagnostics-driven safety networks for proactive line management and uptime optimization.
Get a Quick Quote for a ABB 2TLA020051R5701
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TLA020051R5701?
Enquire Now
FAQs
Yes. The sensor uses an OSSD interface and an M12-8 connection, designed to drop into Eden safety networks with minimal wiring modifications. It supports the Eden interlock approach, and the information output aids diagnostics. Note that the actuator (door/guard) is ordered separately, enabling flexible system configuration.
This device carries SIL 3 and PL e performance, IP67 and IP69K protection, and operates from -40 to 70 C. It is accompanied by cULus, UL, CE, UKCA, and TÜV certifications, providing broad regulatory coverage for automotive, packaging, and general manufacturing environments.
The unit operates at 24 V DC and provides non-failsafe outputs: 0 for regular contacts and 1 for a semiconductor output, via the OSSD safety signaling. The M12-8 male connector simplifies wiring, and the device is intended to be integrated into existing Eden safety circuits with the actuator selected separately.
Yes. With IP69K/IP67 protection, a coated PCBA, and a broad operating temperature range, it is designed for harsh wash-down environments and high-dust lines. This makes it well suited for food and beverage, packaging, and pharmaceutical applications where cleanliness and reliability are paramount.
The high safety integrity (SIL 3, PL e) reduces risk and operational downtime, while the rugged construction lowers maintenance costs and field service events. Safe installation with quick-connect features and diagnostics support enables preventive maintenance planning and faster changeovers, delivering tangible uptime gains and lower total cost of ownership.
