2TMA130050B0060

Part Number: 2TMA130050B0060
Manufacturer
ABB
Part number
2TMA130050B0060

Product Information

Extended Description

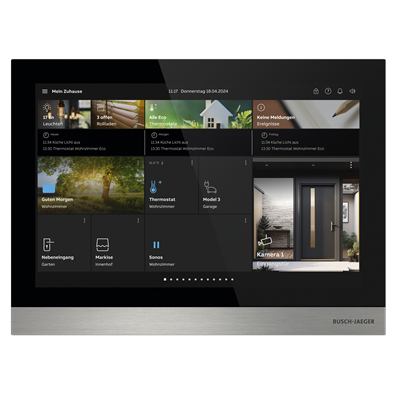

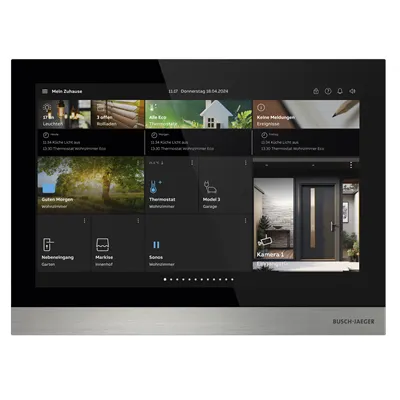

2TMA130050B0060 ABB: With integrated room temperature controller and temperature sensor. Display of the video image of the outdoor station. During the conversation a picture of the visitor can be taken and stored in the picture memory. For door calls during absence three pictures of the visitor are automatically stored in the picture memory. Different bell sounds are adjustable for door and floor ringing five polyphone bell sounds are available. Individual bell sounds (can be integrated via SD card). Volume of bell sounds is adjustable. SD card slot for extension of the picture memory. Equipped with a hearing loop for coupling the audio signal into hearing aids. Capacitive HD display with glass surface (Resolution: 1280 x 800). With hands-free function, volume is adjustable. Individual audio absence function. For integration into the myBUSCH-JAEGER portal. Allows the integration of tablet or smartphone with installed Welcome app as mobile indoor load for audio and video communication. Power supply via Power-over-Ethernet (PoE) 802.3af. Alternative power supply via adapter plug 53011PS-03.
Instructions and Manuals
Operating Instruction (.PDF) [EN] IP Touch 10 H8237-.-03
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -10 ... +55 °C
Degree of Protection
IP30
Data Sheet, Technical Information
Product Manual (.PDF) [NL] IP touch H8236-.-03_H8237-.-03
Communication Interface
LAN + LAN
Compatible Bus Systems
KNX (IP) | free@home (TP)
Product Range
Welcome IP | free@home
Display Type
IPS Touch Display
Includes
Room temperature controller
Material
Glass
RAL Number
Similar to RAL 9004
Color
black
Product Net Width
251 mm
Product Net Height
185 mm
Product Net Depth / Length
31 mm
Product Net Weight
1.4 kg
Screen Size
10 in
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] H8237-5B-03
ETIM 9
EC000779 - Indoor station door communication
eClass
V11.0 : 27144305
