2TMA130050B0069
Part Number: 2TMA130050B0069
Product Information
Extended Description

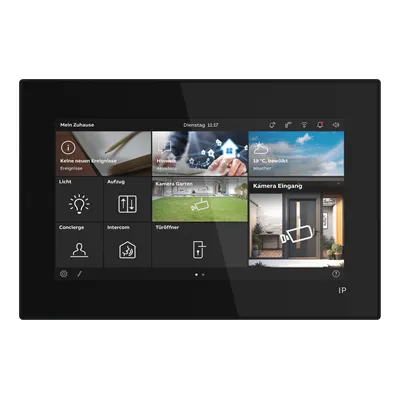

2TMA130050B0069 ABB: Indoor station with 7" display for Busch-Welcome® IP door communication.
Instructions and Manuals
Operating Instruction (.PDF) [EN] IP Touch Lite 7 H8249-1.-03
Mounting Type
Flush Mounted | Surface Mounted
Ambient Air Temperature
Operation 0 ... +45 °C
Degree of Protection
IP30
Data Sheet, Technical Information
Product manual (.PDF) [NL] IP Touch Lite 7 H8249-1.-03
Communication Interface
LAN + Wi-Fi
Product Range
Welcome IP
Display Type
IPS Touch Display
Material
Glass
RAL Number
Similar to RAL 9004
Color
black
Product Net Width
192 mm
Product Net Height
128 mm
Product Net Depth / Length
17 mm
Product Net Weight
362 g
Screen Size
7 in
RoHS Information
REACH & RoHS Declaration (.PDF) [EN] Welcome IP - IP Touch 7 Lite & Mounting Boxes - H8249-x-xx & 42491-x
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
REACH & RoHS Declaration (.PDF) [EN] Welcome IP - IP Touch 7 Lite & Mounting Boxes - H8249-x-xx & 42491-x
REACH Information
False - does not contain substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] H8249-1B-03
ETIM 9
EC000779 - Indoor station door communication
