2TMA200050W0011
Part Number: 2TMA200050W0011
Product Information
Extended Description

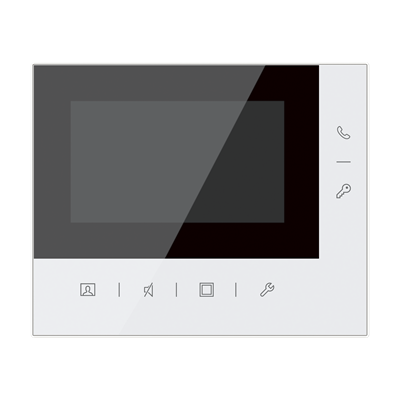

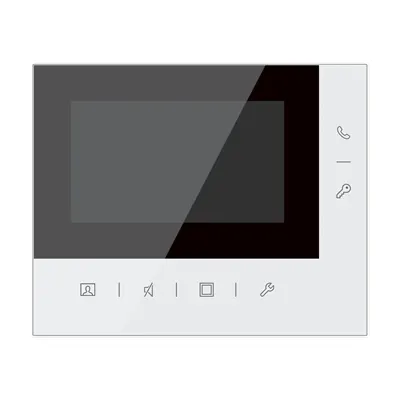

2TMA200050W0011 ABB: Indoor station with 4.3” display for ABB-Welcome door communication (2-wire).
Quick access buttons for door release, muting and monitoring, call history and settings.
Three images of the visitor are automatically stored in the image memory for door calls in absence.
During the call, a picture of the visitor can be taken and stored in the picture memory.
Equipped with a hearing loop for coupling the audio signal into hearing aids.
With hands-free function, hands-free volume adjustable.
Various ring tones and their volume can be set.
With automatic door opener.
Consumption units: 4
Device protection class: IP 30
Instructions and Manuals
Quickstart guide (.PDF) [XX] Video Indoor Station 4.3 M2248.-W M1 | Quickstart guide (.PDF) [XX] Video Indoor Station 4.3 M2248.-W M2
Mounting Type
Surface Mounted
Ambient Air Temperature
Operation 0 ... +45 °C
Degree of Protection
IP30
Compatible Bus Systems
Welcome
Product Range
Welcome
Display Type
TFT Display
Material
Plastic
RAL Number
Similar to RAL 9016
Color
white
Product Net Width
152 mm
Product Net Height
124 mm
Product Net Depth / Length
22.5 mm
Product Net Weight
274 g
Dimension Diagram
Installation Instruction (.PDF) [EN] Video Indoor Station 4.3 M2248.-W
Screen Size
4.3 in
RoHS Information
REACH & RoHS Declaration M22483-W-03 (.PDF) [EN] Busch-Welcome Video Indoor Station 4.3
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH & RoHS Declaration M22483-W-03 (.PDF) [EN] Busch-Welcome Video Indoor Station 4.3
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230208
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [EN] ABB-Welcome Video Indoor Station 4.3 Handset/Handsfree & Kit components
ETIM 9
EC000779 - Indoor station door communication
