2TMA210160N0010
Part Number: 2TMA210160N0010
Product Information
Extended Description

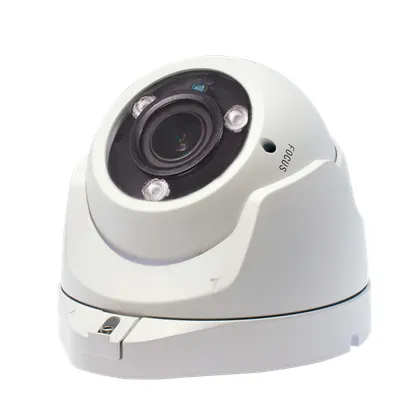

2TMA210160N0010 ABB: Dome camera, Image Sensor: 1/3” 1.3MP SONY Exmor CMOS. Effective Pixels: 1305(H)×1049(V). Resolution: 700. Horizontal detection angle: 30° - 90° (manually adjustable) S/N Ratio: ≥50 dB Video signal: 1 x CVBS, 1Vpp, 75 Ohm (BNC) White Balance: AWB, 1800 – 10800 Lens: 2.8-12 mm IR Range: 40 m Input Voltage: DC 12 V +/- 10 % Rated current: 350 mA Protection class (Device): IP 66
Mounting Type
Surface Mounted
Degree of Protection
IP66
Sensor Detection Range
Horizontal 90 °
Material
Plastic
Color
white
Product Net Width
119 mm
Product Net Height
129.5 mm
Product Net Depth / Length
104 mm
Product Net Weight
500 g
E-Number (Finland)
2814573
E-Number (Norway)
6307663
RoHS Information
RoHS Certificate (.PDF) [EN] Door Entry System
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
6. Small IT and Telecommunication Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [EN] 83550_2-500-01
ETIM 9
EC001104 - External camera door communication
