2TMA210160N0011
Part Number: 2TMA210160N0011
Product Information
Extended Description

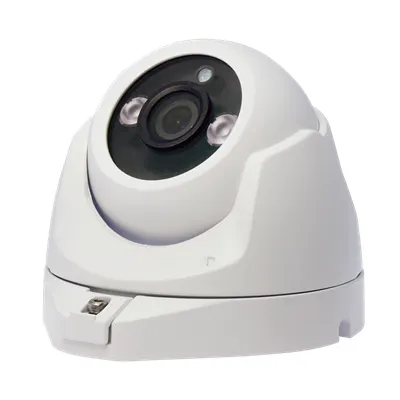

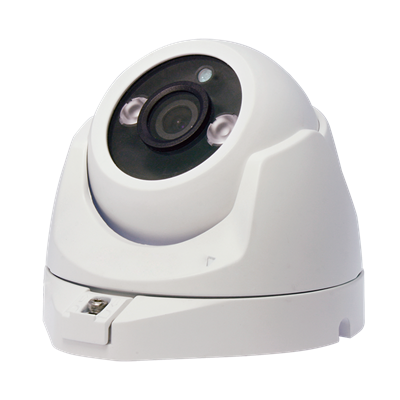

2TMA210160N0011 ABB: Mini dome camera, Image Sensor: 1/3” 1.3MP SONY Exmor CMOS. Effective Pixels: 1305(H)×1049(V). Resolution: 700. S/N Ratio: ≥50 dB Video signal: 1 x CVBS, 1Vpp, 75 Ohm (BNC) White Balance: AWB, 1800 – 10800 IR Range: 30 m Input Voltage: DC 12 V +/- 10 % Rated current: 330 mA Protection class (Device): IP 66
Mounting Type
Surface Mounted
Degree of Protection
IP66
Sensor Detection Range
Horizontal 75 °
Material
Plastic
Color
white
Product Net Width
94 mm
Product Net Height
105 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
315 g
E-Number (Finland)
2814574
E-Number (Norway)
6307664
RoHS Information
RoHS Certificate (.PDF) [EN] Door Entry System
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
6. Small IT and Telecommunication Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [EN] 83550_3-500-01
ETIM 9
EC001104 - External camera door communication
