2TMA310010B0006
Part Number: 2TMA310010B0006
Product Information
Extended Description

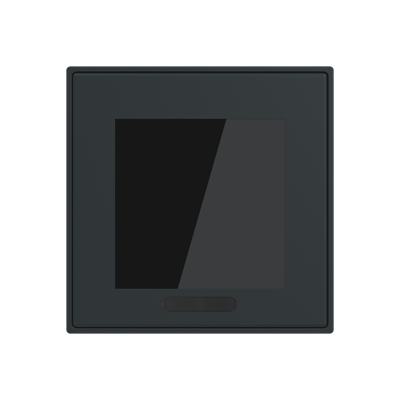

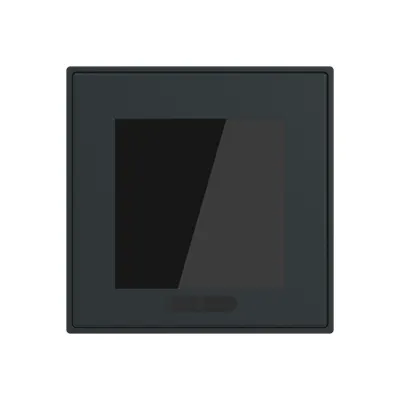

2TMA310010B0006 ABB: Freely programmable touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs.
The display is suitable for the design range:
- Busch-art linear
KNX and free@home functions:
- A total 12 control elements are displayed on a maximum of 12 pages
- 12 fault and alarm messages
- 10 logic functions
- 10 weekly timers
- 10 scene actuators
- 1 integrated temperature controller (RTC)
- Page display with a maximum of 4touch surfaces on one page
- Primary function 12 fault and alarm messages
- Integrated temperature sensor
- Haptic feedback
- Proximity sensor
- Brightness sensor
- 1 binary input or external temperature sensor input (PT1000 / 6226/T)
- KNX Data Secure compatible
External power supply needed: 20-32 VDC (SELV)
Number of bus subscribers: 1
Optional Removal protection: TZE/U.0.xx.CK
Display size: 6,10cm (2.4”)
Display resolution: 240*240
Display screen: IPS display
Dimensions (L x W x D): (69.5mm x 69.5mm x 32mm)
Display surface: glass black (-825)
Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Instructions and Manuals
Operating Instruction (.PDF) [XX] Busch-RoomTouch® 4" SD/U12.xx.11-xxx_RT/U12.xx.11-xxx
Mounting Type
Flush Mounted
Mounting Position
Wall
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Ambient Air Temperature
Operation 0 ... +45 °C
Degree of Protection
IP20
Number of Outputs
1
Compatible Bus Systems
KNX (TP) | free@home (TP)
Product Range
KNX | free@home
Transmission Standard
Twisted Pair Wiring
Display Type
TFT Touch Display
Manual Operation
Yes
Terminal Type
Bus Connection
Security Standard
KNX Data Secure
Rated Voltage (Ur)
20 ... 32 V
Auxiliary Voltage AC/DC
24 V DC
Design Range
Busch-art linear | Trevion
Design Range Variant
Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur
Housing Material
Plastic
Material
Glass | Thermoplastic
Color
glass black
Product Net Width
70 mm
Product Net Height
70 mm
Product Net Depth / Length
42 mm
Product Net Weight
78 g
Built-In Depth (t2)
32 mm
Screen Size
2.4 in
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 51.9 %
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 98 %
Extended Product Lifetime
Product Upgradability
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SD/U12.55(63)(70).1(11)-XXX
RoHS Information
RoHS - Product Declaration (.PDF) [EN] SD/U12.70.11-4015
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SD/U12.70.11-825
ETIM 9
EC000783 - Signalling and operation panel for bus system
eClass
V11.0 : 27143101
