2TMA310011B0001

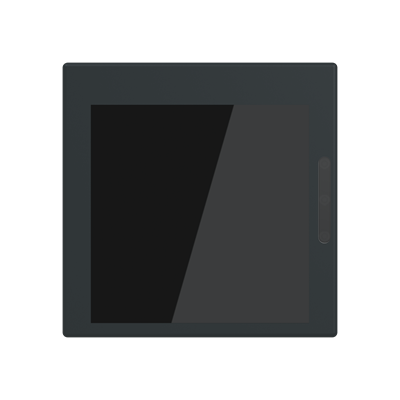

2TMA310011B0001 ABB: Freely programmable touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. The display is suitable for the design ranges: - Busch-balance® SI - ABB-SAGA - ZONI (separate adapter frame needed) - Sidus (separate adapter frame needed) KNX and free@home functions: - A total 12 control elements are displayed on a maximum of 12 pages - 12 fault and alarm messages - 10 logic functions - 10 weekly timers - 10 scene actuators - 1 integrated temperature controller (RTC) - Page display with a maximum of 4 touch surfaces on one page - Primary function 12 fault and alarm messages - Integrated temperature sensor - Haptic feedback - Proximity sensor - Brightness sensor - 1 binary input or external temperature sensor input (PT1000 / 6226/T) - KNX Data Secure compatible External power supply needed: 20-32 VDC (SELV) Number of bus subscribers: 1 Optional Removal protection: TZE/U.0.xx.CK Display size: 6,10cm (2.4”) Display resolution: 240*240 Display screen: IPS display Dimensions (L x W x D): (55mm x 55mm x 32mm) Display surface: glass black (-825) Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
