2TMA310011B0004

Part Number: 2TMA310011B0004
2TMA310011B0004
Manufacturer
ABB
Part number
2TMA310011B0004
Category

Product Information

Extended Description

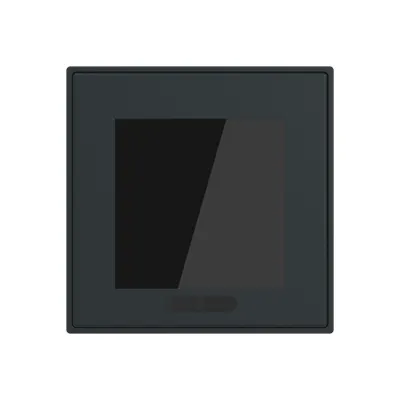

2TMA310011B0004 ABB: Freely programmable Touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 reso-lution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. The display is suitable for the design ranges: - Busch-art linear -Alba KNX and free@home functions: - A total 12 control elements are displayed on a maximum of 12 pages - 18 fault and alarm messages - 10 logic functions - 10 weekly timers - 10 scene actuators - 1 integrated temperature controller (RTC) - Page display with a maximum of 4 touch surfaces on one page - Primary function 18 fault and alarm messages - Integrated temperature sensor - Haptic feedback - Proximity sensor - Brightness sensor - 1 binary input or external temperature sensor input (PT1000 / 6226/T) - KNX Data Secure compatible External power supply needed: 20-32 VDC (SELV) Number of bus subscribers: 1 Optional Removal protection: TZE/U.0.xx.CK Display size: 6,10cm (2.4”) Display resolution: 240*240 Display screen: IPS display Dimensions (L x W x D): (69.5mm x 69.5mm x 32mm) Display surface: glass black (-825) Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Mounting Type
Flush Mounted
Mounting Position
Wall
Ambient Air Temperature
Operation 0 ... +45 °C
Degree of Protection
IP20
Number of Outputs
1
Compatible Bus Systems
KNX (TP) | free@home (TP)
Product Range
free@home | KNX
Display Type
TFT Touch Display
Manual Operation
Yes
Rated Voltage (Ur)
20 ... 32 V
Auxiliary Voltage AC/DC
24 V DC
Design Range
Trevion | Alba | Busch-art linear | ALBA Touch
Housing Material
Plastic
Material
Glass | Thermoplastic
Color
glass black
Product Net Width
70 mm
Product Net Height
70 mm
Product Net Depth / Length
42 mm
Product Net Weight
78 g
Built-In Depth (t2)
32 mm
Screen Size
2.4 in
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 51.9 %
Sustainable Material Content in Packaging (wt. %)
Recycled Cardboard - 98 %
Extended Product Lifetime
Product Upgradability
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SD/U12.55(63)(70).1(11)-XXX
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SD/U12.70.1-825
ETIM 9
EC000783 - Signalling and operation panel for bus system
eClass
V11.0 : 27143101
UNSPSC
39121801
