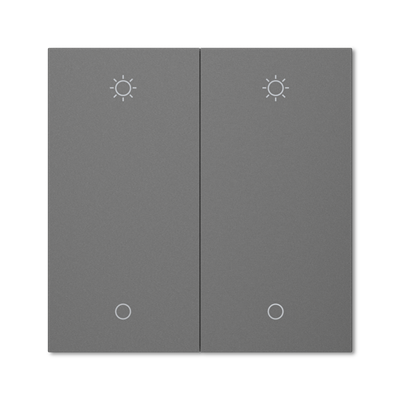

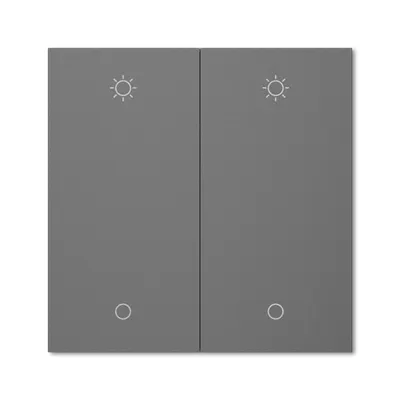

ABB 2TMB010000A0365 2 Gang Dimming Switch - Zigbee 3.0
Part Number: 2TMB010000A0365
Quick Summary
ABB 2TMB010000A0365 2 gang dimming switch enables Zigbee-controlled lighting for commercial and residential installations. This compact device delivers wireless dimming control that simplifies retrofits and new-build projects alike. Common pain points like wired dimming incompatibilities, retrofit complexity, and inconsistent performance across dimmer modules are addressed by a standardized Zigbee 3.0 interface and robust Live & Neutral wiring. The switch complies with RoHS requirements and falls under WEEE guidelines, helping you meet regulatory obligations with ease. In addition, its slim profile and backlit design support fast, error-free installations, while the 0-10V dimmer compatibility expands integration options for smart-building and industrial automation initiatives.
Product Information
Extended Description
2TMB010000A0365 ABB: Z6422-B 2 gang dimming switch, backlight model,Grey,Zigbee 3.0 connection, Live & Neutral wire connection, work with 0-10V dimmer module, short-press switch to switch on/off light, long-press switch to adjust lightness
RoHS Information
Declaration (.PDF) [CN] RoHS Declaration for CN-20220630
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20220630
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
86 mm
Product Net Height
35.5 mm
Product Net Depth / Length
86 mm
Product Net Weight
121.4 g
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
154.5 g
Instructions and Manuals
2TMU220000M0035
Feature: Zigbee 3.0 wireless connectivity enables reliable mesh networking and centralized control across multiple zones. Business Impact: Improves commissioning speed, reduces cabling complexity, and lowers field maintenance costs. Application: Suitable for head-end control in smart offices, retail spaces, and industrial facilities. Feature: Backlit grey front panel enhances visibility in low-light environments. Business Impact: Minimizes misoperation during dimming sequences and night-time adjustments, cutting callouts and technician time. Application: Hospitality lobbies, conference rooms, and control rooms that require quick status checks. Feature: Live and Neutral wiring with 0-10V dimmer module compatibility simplifies integration with existing dimming ecosystems. Business Impact: Accelerates retrofit projects and broadens compatibility with legacy lighting systems. Application: Retrofit projects in commercial buildings and industrial plants. Feature: Short-press to on/off and long-press to adjust lightness provides intuitive user interaction. Business Impact: Reduces operator training and speeds scene changes, increasing workflow throughput. Application: Office environments, hospitality venues, and user-centric smart controls. Feature: RoHS compliance and WEEE categorization ensure regulatory alignment. Business Impact: Streamlines procurement, supports sustainability goals, and mitigates compliance risk. Application: Global deployments in markets with strict material and end-of-life requirements. Feature: Compact dimensions (86 mm width, 35.5 mm height, 86 mm depth) and 121.4 g weight enable easy replacement in standard backboxes. Business Impact: Lower installation time and higher fit success in conduit and wall cavities. Application: New-build installations and retrofit replacements in compact enclosures.
Get a Quick Quote for a ABB 2TMB010000A0365
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TMB010000A0365?
Enquire Now
FAQs
Begin by turning off power, then connect Live and Neutral to the switch according to the labeling. The device has a compact footprint (86 mm W x 35.5 mm H x 86 mm D) and fits standard backboxes. After wiring, pair with a Zigbee hub and verify 0-10V dimmer module compatibility for seamless dimming control.
You get reliable Zigbee 3.0 wireless control, 2-gang operation, and local dimming behavior via short-press to toggle and long-press to adjust brightness. It supports standard Live & Neutral wiring and is compatible with 0-10V dimmer modules, making it suitable for both new installations and retrofits.
Yes. Its Zigbee 3.0 connectivity, 2-gang form factor, and 0-10V compatibility make it ideal for smart-building deployments in offices, retail spaces, hospitality, and light industrial environments. The RoHS/WEEE compliance helps meet regulatory requirements across multiple regions.
The device adheres to RoHS directives and WEEE guidelines, ensuring material compliance and proper end-of-life handling. Zigbee 3.0 compatibility provides a standardized wireless interface for interoperable smart home and commercial lighting ecosystems.
The 2TMB010000A0365 reduces wiring complexity and installation time thanks to Live/Neutral wiring and 0-10V compatibility, lowering labor costs. Regulatory compliance minimizes risk during audits, while Zigbee 3.0 enables predictive maintenance and centralized control, ultimately improving energy management and ROI over the lifecycle of the installation.
