2TQN000015Y0101
Part Number: 2TQN000015Y0101
Product Information
Extended Description

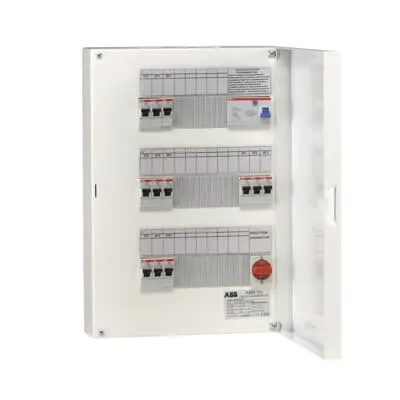

2TQN000015Y0101 ABB: RP4E12S Distribution board surface mnt , Surface mounted, IP20, Dimensions: 450 mm x 300 mm x 108 mm
Rated Current (In)
40 A
Number of Poles Main Switch
4
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
300mA 0 | 30mA 1
Number of Phases in Cooking Group
0
Cover Plate Type
Door
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Steel
RAL Number
RAL 9010 - Pure White
Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP20C
Width in Number of Modular Spacings
12
Product Net Width
300 mm
Product Net Height
450 mm
Product Net Depth / Length
108 mm
Product Net Weight
7 kg
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
7.5 kg
E-Number (Finland)
3310412
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
UNSPSC
39121311
