2TQN000016Y0101
Part Number: 2TQN000016Y0101
Product Information
Extended Description

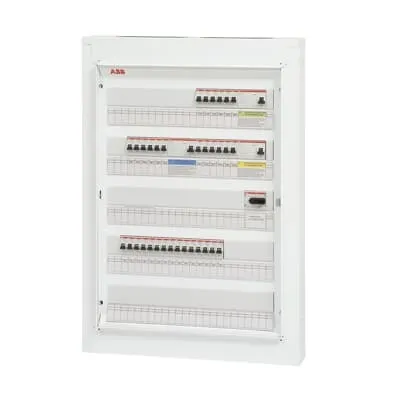

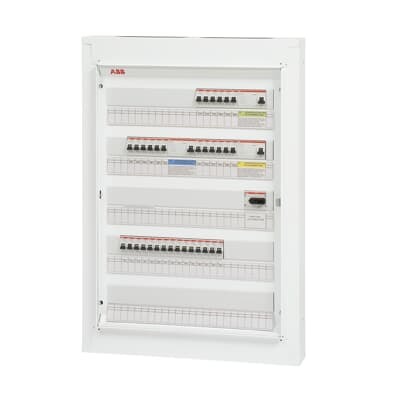

2TQN000016Y0101 ABB: RY5E33JS Distribution board flush/surf , Surface mounted/recessed mounted, IP20, Dimensions: 800 mm x 550 mm x 112 mm
Rated Current (In)
50 A
Number of Poles Main Switch
4
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
300mA 0 | 30mA 3
Number of Phases in Cooking Group
0
Mounting Type
Surface mounted/recessed mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Steel
RAL Number
RAL 9016 - Traffic White
Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP20C
Width in Number of Modular Spacings
24
Product Net Width
550 mm
Product Net Height
800 mm
Product Net Depth / Length
112 mm
Product Net Weight
19.5 kg
Built-In Depth (t2)
95 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
20.5 kg
E-Number (Finland)
3310100
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
UNSPSC
39121105
