2TQN000020Y0101
Part Number: 2TQN000020Y0101
Product Information
Extended Description

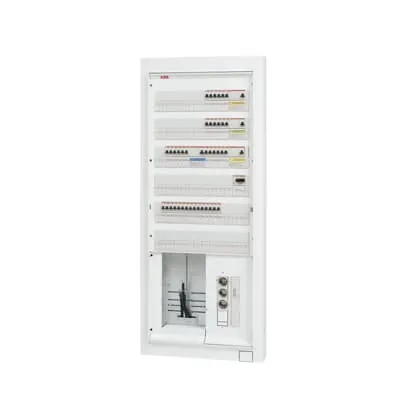

2TQN000020Y0101 ABB: YM5T39JS Meter board flush/wall mount , Surface mounted/partially recessed mounted, IP20, Dimensions: 1350 mm x 550 mm x 112 mm
Rated Current (In)
50 A
Model Number
2-story
Number of Meter Cabinets
1
Number of Panel Widths
144
Lower Connection Space
with Clamps
Mounting Type
Surface mounted/partially recessed mounted
Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP20C
Product Net Width
550 mm
Product Net Height
1350 mm
Product Net Depth / Length
112 mm
Product Net Weight
23.6 kg
Built-In Depth (t2)
112 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
24.6 kg
E-Number (Finland)
3310114
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
UNSPSC
39121311
