2TQN000050Y0102
Part Number: 2TQN000050Y0102
Product Information
Extended Description

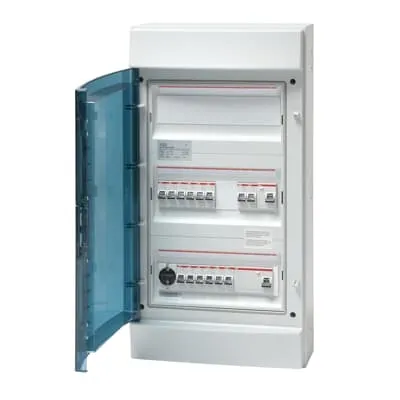

2TQN000050Y0102 ABB: RP4E14JUMV Distribution board PS, Surface mounted, IP65, 600 mm x 320 mm x 155 mm
Rated Current (In)
40 A
Number of Poles Main Switch
3
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
300mA 0 | 30mA 2
Number of Phases in Cooking Group
0
Cover Plate Type
Door
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Plastic
RAL Number
RAL 7035 - Light Grey
Color
Grey
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP65
Width in Number of Modular Spacings
12
Product Net Width
320 mm
Product Net Height
600 mm
Product Net Depth / Length
155 mm
Product Net Weight
6.2 kg
Package Level 1 Units
10 piece
Package Level 1 Gross Weight
6.8 kg
E-Number (Finland)
3405663
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
UNSPSC
39121105
