2TQN000054Y0102
Part Number: 2TQN000054Y0102
Product Information
Extended Description

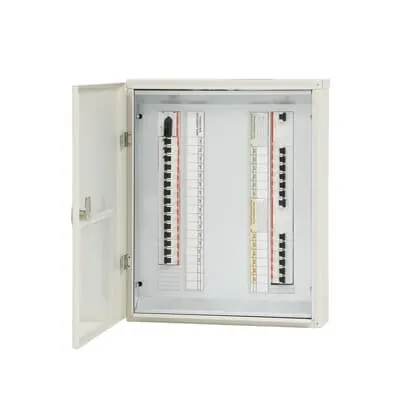

2TQN000054Y0102 ABB: RY8E27JUV Distribution board Fe, Surface mounted, IP34, 500 mm x 400 mm x 112 mm
Rated Current (In)
80 A
Number of Poles Main Switch
4
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
300mA 0 | 30mA 2
Number of Phases in Cooking Group
0
Cover Plate Type
Door
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Steel
RAL Number
RAL 1001 - Beige
Color
Beige
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP34
Width in Number of Modular Spacings
21
Product Net Width
400 mm
Product Net Height
500 mm
Product Net Depth / Length
112 mm
Product Net Weight
13.4 kg
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
13.9 kg
E-Number (Finland)
3405509
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
UNSPSC
39121105
