2TQN000056Y0102
Part Number: 2TQN000056Y0102
Product Information
Extended Description

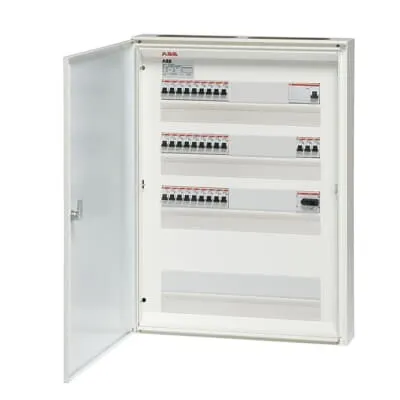

2TQN000056Y0102 ABB: RY8E30U Distribution board Fe, Surface mounted, 700 mm x 500 mm x 112 mm
Rated Current (In)
80 A
Number of Poles Main Switch
4
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
300mA 0 | 30mA 1
Number of Phases in Cooking Group
0
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Steel
RAL Number
RAL 9010 - Pure White
Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP34
Width in Number of Modular Spacings
21
Product Net Width
500 mm
Product Net Height
700 mm
Product Net Depth / Length
112 mm
Product Net Weight
30 kg
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
18.4 kg
E-Number (Finland)
3417421
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
UNSPSC
39121105
