2TQN000063Y0102
Part Number: 2TQN000063Y0102
Product Information
Extended Description

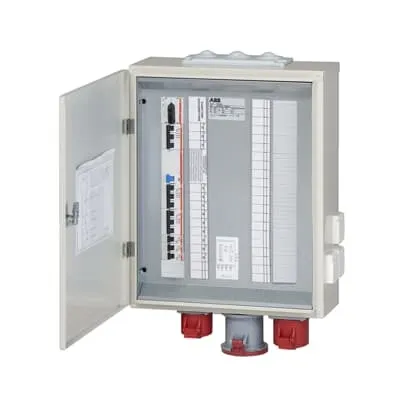

2TQN000063Y0102 ABB: T80K8V Workstation panel, Wall mounting, IP44, 550 mm x 400 mm x 155 mm
Rated Current (In)
80 A
Power Supply Connection
Built-Up Plug
Number of Miniature Circuit Breakers (MCBs)
6
Earth Leakage Sensitivity
Switch with IFN 30 mA (Standard)
Mounting Type
Wall mounting
Socket Outlet Type
CEE Power Socket Outlets - 1x 16A / 400 V / 5P | CEE Power Socket Outlets - 2x 32A / 400 V / 5P | CEE Power Socket Outlets - 1x 63A / 400 V / 5P
Housing Material
Steel
Color
Beige
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP44
Product Net Width
400 mm
Product Net Height
550 mm
Product Net Depth / Length
155 mm
Product Net Weight
18 kg
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
16.8 kg
E-Number (Finland)
3419358
ETIM 8
EC000379 - CEE socket outlet combination
ETIM 9
EC000379 - CEE socket outlet combination (IEC 60309)
UNSPSC
39121300
