2TQN000115Y0104
Part Number: 2TQN000115Y0104
Product Information
Extended Description

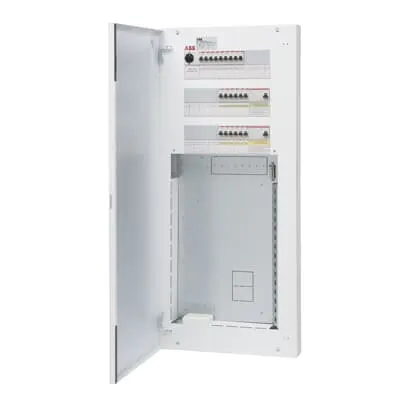

2TQN000115Y0104 ABB: RP2E21JS-IT Distribution board data surf , Surface mounted, IP20, Dimensions: 1000 mm x 480 mm x 100 mm
Rated Current (In)
25 A
Number of Poles Main Switch
4
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
300mA 0 | 30mA 2
Number of Phases in Cooking Group
0
Cover Plate Type
Door
Mounting Type
Surface mounted
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Steel
RAL Number
RAL 9016 - Traffic White
Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP20C
Width in Number of Modular Spacings
19
Product Net Width
480 mm
Product Net Height
1000 mm
Product Net Depth / Length
102 mm
Product Net Weight
25.5 kg
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
26.1 kg
E-Number (Finland)
3310130
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
UNSPSC
39121105
