2TQN000118Y0104
Part Number: 2TQN000118Y0104
Product Information
Extended Description

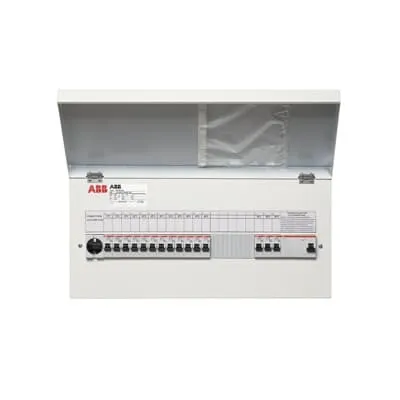

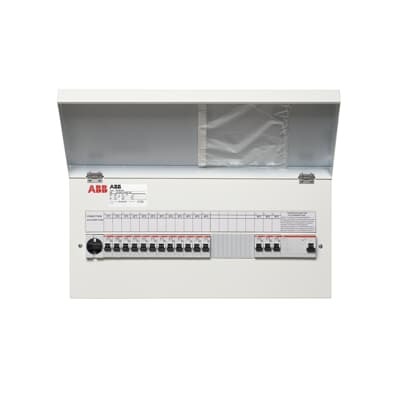

2TQN000118Y0104 ABB: RU4E15S Distribution board flush mnt , IP20, Dimensions: 240 mm x 525 mm x 95 mm
Rated Current (In)
40 A
Number of Poles Main Switch
3
Number of Phases
3
Number of Earth Leakage Circuit Breakers (ELCBs)
300mA 0 | 30mA 1
Number of Phases in Cooking Group
0
Cover Plate Type
Door
Protection Type
Miniature-/earth leakage circuit breaker
Housing Material
Steel
RAL Number
RAL 9010 - Pure White
Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP20C
Width in Number of Modular Spacings
26
Product Net Width
525 mm
Product Net Height
240 mm
Product Net Depth / Length
95 mm
Product Net Weight
7 kg
Built-In Depth (t2)
57 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8 kg
E-Number (Finland)
3310505
ETIM 8
EC002288 - Small distribution board equipped
ETIM 9
EC002288 - Small distribution board equipped
UNSPSC
39121105
