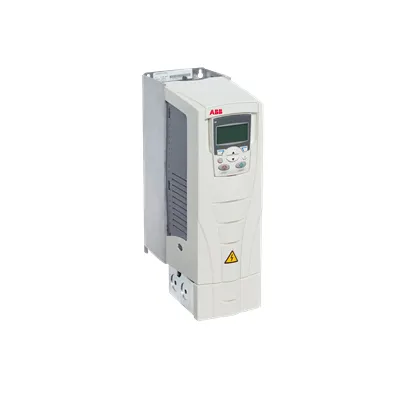

ABB ACS510-01-05A6-4 Industrial Motor Drive - IP21
Part Number: 3ABD00015743-D
Quick Summary
ABB ACS510-01-05A6-4 is a compact variable frequency drive for precise motor control in machine tools and conveyors. Engineers often struggle to match drives to existing motors, ensure fault protection, and simplify panel installation. This model is CE-compliant and IP21-rated, delivering safe indoor operation and reliable performance in standard plant environments. It also aligns with ABB’s drive ecosystem, enabling straightforward commissioning, diagnostics, and plant-wide automation integration. By standardizing on this model, procurement and maintenance teams gain predictable performance, energy efficiency, and reduced downtime, while preserving compatibility with common control strategies and ABB tooling.
Product Information
Extended Description
3ABD00015743-D ABB: ACS510-01-05A6-4,5.6A,380V,IP21
Feature: 380V input with a 5.6A rating provides direct compatibility with standard industrial three-phase power and moderate-load motors. Business Impact: Reduces wiring complexity and minimizes power conversion losses, improving system efficiency and reliability. Application: Ideal for small to mid-size conveyors and drive motors in production lines. Feature: IP21 enclosure offers indoor protection against dust and light moisture. Business Impact: Lowers maintenance frequency and extends drive life in controlled environments. Application: Cabinet-mounted drives in manufacturing floors and assembly cells. Feature: Compact footprint with straightforward commissioning supports fast installation. Business Impact: Shortens commissioning time, frees cabinet space, and reduces installation costs. Application: Retrofit projects in tight panel layouts and new line deployments. Feature: Built-in motor protection and fault diagnostics. Business Impact: Early fault detection minimizes unplanned outages and protects motor assets. Application: Continuous operation on conveyors, pumps, and tooling systems. Feature: Compatibility with ABB drive ecosystem enables unified diagnostics and remote monitoring. Business Impact: Streamlined maintenance, centralized data, and scalable automation. Application: Plant-wide automation and future-proof upgrades.
Get a Quick Quote for a ABB 3ABD00015743-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00015743-D?
Enquire Now
FAQs
ACS510-01-05A6-4 is designed for standard 380V three-phase supplies and indoor panel mounting. Ensure correct wiring to the motor, proper circuit protection, and adequate space for heat dissipation. Verify IP21-rated enclosure adequacy for the environment and use the manufacturer’s parameter sets to match motor current and torque requirements. Confirm compatibility with existing ABB control hardware and safety interlocks to minimize commissioning time.
The drive is rated around 5.6A at 380V, enabling precise speed control of compatible motors. You can expect smooth ramping, adjustable acceleration/deceleration, and motor protection features such as overcurrent and thermal monitoring. While exact efficiency will depend on motor pairings and load profiles, the unit is designed to improve energy use and reduce mechanical wear through controlled torque delivery.
Yes. The IP21 enclosure provides protection suitable for indoor industrial settings, and the 380V/5.6A rating supports typical conveyor and small-to-mid-sized pump applications. For conveyors, use appropriate motor control strategies (soft-start, ramp rates) to minimize belt tension and wear. For pumps, synchronize speed to process demand to maximize energy savings and reduce mechanical stress.
The ACS510-01-05A6-4 is CE-compliant and IP21-rated, ensuring regulatory alignment for European markets and safe indoor operation. These certifications support safe integration into standard control cabinets and compliance with basic electrical safety and EMC requirements. Verify any region-specific standards beyond CE as part of your procurement checklist.
ROI comes from energy efficiency due to controlled motor speed, reduced wear from soft-start capabilities, and lower maintenance costs due to built-in fault diagnostics. By standardizing on a single drive family, you also reduce spare parts and training needs, speeding up maintenance and shortening downtime in production lines.
