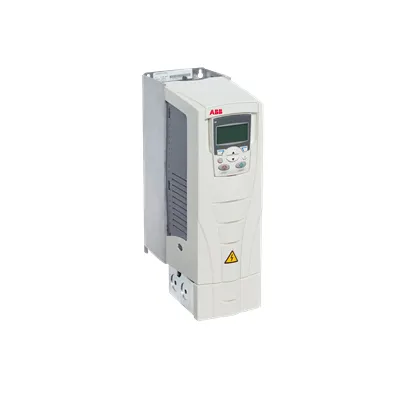

ABB ACS510-01-09A4-4 Motors & Drives - IP21
Part Number: 3ABD00015745-D
Quick Summary
ABB ACS510-01-09A4-4 is a compact VFD that controls motor speed and torque for automation applications. Engineers often struggle with energy waste, startup surges, and integration hurdles when upgrading older drives. This model offers CE certification and an IP21 enclosure, delivering reliable indoor performance on 380V three-phase systems with a 9.4A rating. By combining precise control with a space-efficient form factor, it enables easier panel mounting and faster deployment. Adopting the ACS510-01-09A4-4 supports standard motor compatibility and easier integration within ABB’s automation ecosystem, driving uptime and efficiency. Operators benefit from straightforward parameterization and predictable performance across common industrial tasks. Distributors value broad availability and robust support networks that minimize downtime.
Product Information
Extended Description
3ABD00015745-D ABB: ACS510-01-09A4-4,9.4A,380V,IP21
Compact, space-saving design → frees cabinet space, speeds installation, and reduces enclosure costs. In practice, engineers use ACS510-01-09A4-4 to fit motor drives into crowded panels for packaging machines and compact automation cells. IP21-rated protection → indoor suitability with minimal protective enclosures required, lowering part count and lead times. In real-world line upgrades, this enables straightforward installation inside standard control panels for conveyors and pumps in general-purpose environments. 380V input, 9.4A rating → supports medium-power motors with efficient speed control, enabling energy savings during load changes. This makes it well-suited for conveyors, pumps, fans, and machine tools where precise ramping reduces mechanical wear and demand charges. CE compliance and standard wiring interfaces → regulatory assurance and easier integration with existing control architectures. Benefits include faster commissioning, reduced risk of non-conformity, and smoother diagnostics across ABB drives families. ABB ecosystem compatibility and serviceability → consistent diagnostics, spare parts availability, and easier firmware updates. This translates to lower training requirements for maintenance teams and faster, longer-lasting operation across OEM projects and end-user installations. Overall value: improved efficiency, uptime, and total cost of ownership in general automation scenarios.
Get a Quick Quote for a ABB 3ABD00015745-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00015745-D?
Enquire Now
FAQs
Begin with a clean 380V three-phase supply and an IP21-rated enclosure. Connect L1-L3 to the drive input, then wire the motor to the U/V/W outputs. Configure motor parameters to match a 9.4A, 380V load, set ramp times, and limit switches as needed. Use standard ABB wiring practices and verify EMI suppression to ensure reliable operation in typical factory panels.
The drive is rated for 9.4A at 380V, designed for three-phase motors. It features an IP21 enclosure for indoor use and provides basic motor control functions suitable for general automation tasks. These specs support medium-power applications like conveyors, pumps, and fans with reliable performance and straightforward commissioning.
Yes. The 380V, 9.4A ACS510-01-09A4-4 is well-suited for light-to-medium duty motors used in conveyors, pumps, and fans. Its variable-speed control enables energy savings, smoother starts, and more precise speed profiles, helping to minimize mechanical wear and optimize process performance in common material handling and processing lines.
This drive carries CE certification and an IP21 enclosure rating, aligning with European safety standards and indoor general-purpose use. It is intended for controlled environments inside standard panels, avoiding harsh or outdoor conditions. These certifications support regulatory compliance and predictable performance in global installations.
The drive benefits from ABB’s established spare parts network and service channels, contributing to lower maintenance costs and faster service when needed. Energy efficiency from variable-speed control reduces running costs, while easier commissioning and standard interfaces shorten project timelines. ROI depends on duty cycle, but the combination of uptime gains and reduced panel complexity generally delivers a favorable payback.
