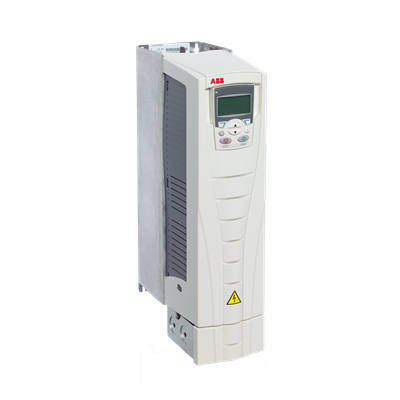

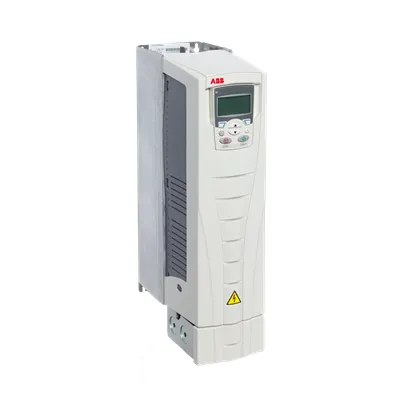

ABB 3ABD00015747-S ACS510 - 17A 380V 3P
Part Number: 3ABD00015747-S
Quick Summary
ABB ACS510 3ABD00015747-S is a compact variable frequency drive designed for precise motor control in industrial automation. Engineers often face tuning difficulties, unreliable performance, and downtime when integrating new drives into existing lines. This solution addresses those challenges with smooth acceleration, robust protection, and intuitive parameterization. The design emphasizes CE safety compliance, a SIL-ready safety concept, and options for IP-rated enclosures to withstand harsh environments. With support for 380V three-phase systems and a 17A load, it integrates seamlessly into established plants while enabling streamlined maintenance, remote diagnostics, and scalable automation across multiple production lines.
Product Information
Extended Description
3ABD00015747-S ABB: ACS510-01-017A-4
Feature → Business Impact → Application: Integrated motor protection and soft-start reduce mechanical wear and energy spikes, extending motor life and lowering maintenance costs; ideal for conveyors and pumps where start/stop cycles are frequent. Feature → Business Impact → Application: Precise speed control via robust control algorithms delivers repeatable production speeds and reduced scrap, improving line throughput in packaging and material handling. Feature → Business Impact → Application: Plug-and-play installation with standard cabling and ABB ecosystem compatibility simplifies commissioning and minimizes downtime during rollout across multiple lines. Feature → Business Impact → Application: Built-in diagnostics and remote monitoring enable proactive maintenance and faster fault isolation, cutting field service visits in water treatment, HVAC, and extrusion processes. Feature → Business Impact → Application: Energy-efficient performance with overload protection lowers operating costs, supporting green initiatives while maintaining productivity in metal forming and extrusion. Feature → Business Impact → Application: Safety integration and configurable permissions align with CE and SIL considerations, helping facilities meet regulatory requirements without sacrificing uptime.
Get a Quick Quote for a ABB 3ABD00015747-S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00015747-S?
Enquire Now
FAQs
Begin by verifying the motor nameplate is 380V AC and three-phase. Connect L1, L2, L3 to the drive input, attach the motor to the output, then configure motor parameters (rated voltage, nominal current, pole count). Use standard ABB commissioning software or keypad wizard to align protection settings, acceleration/deceleration ramps, and safety interlocks. Verify wiring integrity and perform a dry run before loading the actual application.
The drive operates on 380V three-phase power with a rated current of 17A. It supports typical industrial loads requiring precise speed control and torque management. Expect improved energy efficiency due to optimized motor control, smoother ramping, and reduced peak current. Verify motor efficiency class and ensure correct motor compatibility to maximize performance and minimize heat generation.
Yes. The ACS510 is well-suited for conveyors, pumps, and fans commonly found in packaging and material handling. Its precise speed control, ramping profiles, and protection features help maintain consistent throughput, reduce mechanical stress on belts and seals, and minimize vibration—contributing to longer equipment life and fewer maintenance cycles.
The drive is designed with CE compliance in mind and supports safety-conscious configurations suitable for SIL-related workflows. While enclosure specifics depend on the chosen housing, the product line typically accommodates protection levels suitable for factory floors, enabling safe integration into certified systems and adherence to European safety standards.
Expect reduced maintenance visits due to built-in diagnostics and remote monitoring capabilities that enable proactive servicing. The improved motor efficiency and smoother operation translate to lower energy costs and reduced downtime, delivering a favorable ROI over typical life cycles for conveyors and pumps in manufacturing environments.
