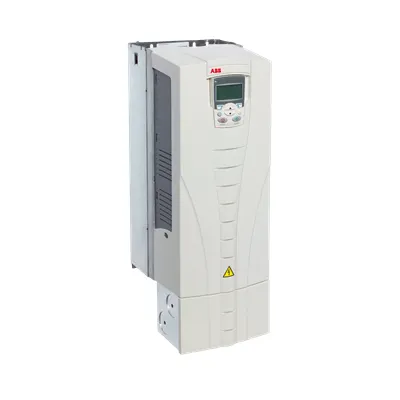

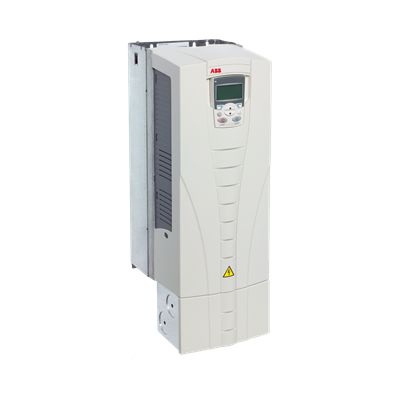

ABB 3ABD00015749-S ACS510 Servo Drive - 380V
Part Number: 3ABD00015749-S
Quick Summary
ABB 3ABD00015749-S ACS510 servo drive is a robust solution for precise three-phase motor control in manufacturing lines. Engineers often confront downtime from inconsistent torque, motor wear, and unreliable acceleration profiles; this drive delivers smooth velocity control and dependable performance to minimize those issues. The system is CE-compliant with safety architecture aligned to SIL concepts, and available in IP-rated variants for harsher environments, helping you meet regulatory and site requirements. By integrating seamlessly with ABB automation ecosystems, it also reduces commissioning time and spare-part costs, while enabling energy-efficient operation. For manufacturers pursuing uptime, traceability, and predictable maintenance, the ACS510 offers a compelling value proposition across multiple line applications.
Product Information
Extended Description
3ABD00015749-S ABB: ACS510-01-031A-4
Feature: Three-phase motor control up to 31A at 380V enables scalable drive solutions with improved torque smoothness and energy efficiency. Business Impact: Reduces cycle times and motor wear, lowering maintenance costs and boosting line productivity. Application: Packaging lines and conveyors where precise speed and torque are critical. Feature: Compact integration with the ABB ecosystem simplifies wiring and commissioning. Business Impact: Shortens installation time and minimizes commissioning risk, reducing total cost of ownership. Application: New line installations and retrofit projects in machine tools and automated handling. Feature: Diagnostics and remote monitoring capabilities support predictive maintenance. Business Impact: Minimizes unplanned downtime by early fault detection and trend analysis. Application: Continuous process industries and high-availability packaging cells. Feature: Safety architecture with CE-aligned compliance and SIL-capable options. Business Impact: Improves regulatory compliance and reduces risk of safety violations across operations. Application: Any environment requiring formal safety assurances, including automotive, packaging, and material handling. Feature: Energy-efficient motor control with protection features. Business Impact: Lower energy consumption and extended motor life, delivering lower operating costs. Application: Large-scale conveyors and production lines with frequent stop-start cycles.
Get a Quick Quote for a ABB 3ABD00015749-S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00015749-S?
Enquire Now
FAQs
Install by system-design guidelines for ACS510: connect the 380V supply to L1-L3, wire the motor to U-V-W, and configure basic torque and speed parameters. Use proper shielding and Earth grounding, then run a dry-run test to verify direction and ramp profiles before full-load operation.
ACS510 offers robust vector or V/f control with precise ramping and torque regulation, delivering repeatable speeds and smooth starts/stops. This reduces mechanical wear, improves packaging synchronization, and minimizes product damage from speed fluctuations.
The ACS510 family is designed to meet CE requirements and includes safety features aligned with standard industrial safety concepts. Depending on configuration, SIL-like safety architecture can be implemented. Always verify local regulatory requirements and use appropriate protective enclosures and interlocks.
ACS510 is designed for three-phase motors up to 380V with a continuous current rating around 31A. It integrates well with ABB automation stacks and can be used with compatible third-party motors that meet voltage and current specs, provided wiring and signal conventions are observed.
By enabling energy-saving motor control, reducing torque-related wear, and providing fault diagnostics, the ACS510 lowers operating costs and downtime. Remote monitoring capabilities also reduce field service visits, contributing to faster issue resolution and higher overall equipment effectiveness.
