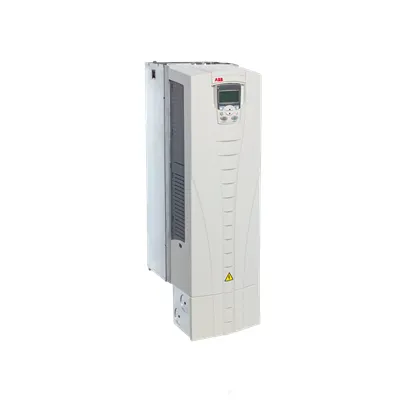

ABB ACS510-01-072A-4+C135 Motor Drive - 72A/380V
Part Number: 3ABD00018834
Quick Summary
ACS510-01-072A-4+C135 is a compact motor drive designed to control AC motors in machine automation applications. Engineers often struggle with achieving precise speed control while meeting efficiency targets within tight panel spaces. The drive aligns with essential standards to streamline compliance, including CE conformity and ABB’s safety and installation guidelines, with robust diagnostics and protected operation. By delivering smooth torque, scalable parameterization, and straightforward integration with existing automation layers, this solution minimizes wiring, reduces commissioning time, and lowers total cost of ownership for OEMs and system integrators. With flange-mount compatibility and configurable protection, it supports quick installations in conveyors, packagers, and machine cells.
Product Information
Extended Description
3ABD00018834 ABB: ACS510-01-072A-4+C135,72A,380V,for flange mounting, not including mounting set
Flange mounting design reduces enclosure footprint and simplifies alignment with the driven shaft, speeding installation and minimizing panel space. This translates to lower installation labor and faster time-to-first-run for conveyors and machine cells, making retrofits and capacity upgrades more economical. With a 72A continuous current at 380V, the ACS510-01-072A-4+C135 delivers strong starting torque and steady speed control for mid-size motors. The result is higher line throughput, reduced motor heat, and improved energy efficiency across duty cycles common in packaging, material handling, and automation cells. Parameterizable control and on-board diagnostics enable faster commissioning and simpler fault isolation. Engineers can tune performance for load variations and protect equipment without extensive external hardware, shortening downtime and improving repeatability in production lines. Compatibility with standard ABB control architectures and straightforward panel integration reduce wiring complexity and commissioning risk. This simplifies replacements and upgrades in legacy lines, helping integrators meet project timelines and budget targets. Protection features and fault monitoring support safer operation and predictable maintenance. By minimizing unplanned outages and enabling proactive service, the drive helps lower total cost of ownership across the asset life cycle.
Get a Quick Quote for a ABB 3ABD00018834
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00018834?
Enquire Now
FAQs
To install the ACS510-01-072A-4+C135 with flange mounting, secure the drive to the panel surface, ensure the mounting area is clean and aligned, and connect the 3‑phase 380V supply with proper torque on the terminals. Wire the motor leads per the user guide, then configure basic motor type, rated current, and speed range settings. Perform a functional test to verify protection circuits and smooth operation before commissioning.
The drive is rated for 72A continuous current at 380V, suitable for mid-size three‑phase motors used in conveyors and packaging lines. It supports open- or closed-loop control modes depending on parameterization. Always ensure motor nameplate ratings match the drive to maintain safe overload margins and stable efficiency during varied load conditions.
Yes. The ACS510-01-072A-4+C135 is well-suited for packaging line conveyors and machine cells requiring reliable speed control, compact footprint, and straightforward integration with ABB automation stacks. It supports frequent starts and stops with smooth torque, reduces mechanical stress, and can be tuned to meet line-speed requirements while maintaining energy efficiency.
ABB drives in this family typically conform to CE safety and EMC standards and carry standard industrial approvals. For regional regulatory needs, verify the exact certification package in the product datasheet and request UL/IEC attestations from your supplier if required. Always consult the latest ABB documentation for region-specific compliance.
Upgrading to the ACS510 drive can reduce energy consumption through optimized speed control and smoother starts, shorten commissioning, and lower wiring complexity with integrated diagnostics. While ROI varies by application, typical gains come from improved line throughput, reduced maintenance, and faster changeovers in packaging and automation lines.
