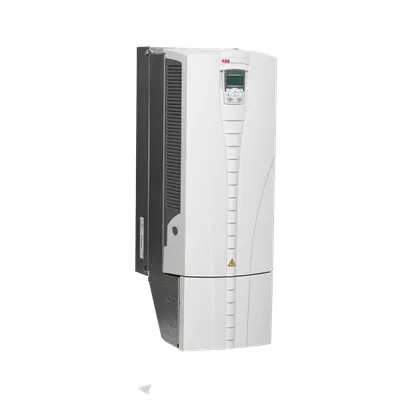

ABB 3ABD00018839 Drive - ACS510-01-195A-4+C135, 380V
Part Number: 3ABD00018839
Quick Summary
ABB ACS510 drive is a compact, flange-mounted low-voltage drive designed to precisely control AC motors in automation and packaging lines. For engineers facing tight panel space and wiring challenges, this mounting-friendly variant speeds commissioning and reduces installation risk. While certifications vary by region and configuration, typical ACS510 implementations align with CE compliance and commonly supported IP ratings, with SIL assessments available where required. By delivering reliable 195A at 380V and seamless motor control, it adds value through improved energy efficiency, reduced wear, and accelerated project timelines. This makes it well-suited for mid-sized automation and conveyor applications where space, performance, and ease of integration matter most.
Product Information
Extended Description
3ABD00018839 ABB: ACS510-01-195A-4+C135,195A,380V,for flange mounting, not including mounting set
Flange mounting provides a compact footprint and straightforward alignment, reducing panel depth and enabling easier retrofit projects. The result is faster installation, simpler wiring, and lower commissioning risk in conveyor and packaging lines. A 195A current rating at 380V supports larger motors while maintaining precise speed control, which translates to smoother processes, reduced mechanical stress, and lower maintenance costs over the life of the system. Compatibility with standard 380V three-phase power simplifies integration with existing plant infrastructure, cutting transformation and wiring complexity and enabling rapid deployment across machines and automations cells. Not including a mounting kit offers installation flexibility, allowing engineers to specify a kit that fits enclosure size and mounting surfaces, which reduces unnecessary ballast while improving overall total cost of ownership. As part of the ACS510 family, this drive benefits from ABB’s ongoing reliability, diagnostics, and service support, ensuring predictable performance in manufacturing environments. Industry-specific contexts such as conveyors, robotics interfaces, and automated packaging lines benefit from enhanced motor control, energy efficiency, and reduced downtime. This configuration supports long-term reliability in industrial automation while aligning with mainstream procurement and maintenance workflows.
Get a Quick Quote for a ABB 3ABD00018839
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00018839?
Enquire Now
FAQs
To install, verify that a mounting kit compatible with flange mounting is procured separately, align the drive with the enclosure flange, and secure using standard fasteners. Connect the 380V three-phase power, motor leads, and control wiring according to the ACS510 installation guide. Ensure proper protective enclosure rating and clearance for cooling, then commission and test with a safe torque-off procedure before operating at full speed.
This drive is designed for 380V three-phase power and has a continuous current rating of 195A. These specifications support medium- to high-power motors in industrial setups, enabling reliable torque control and smooth speed ramping across a wide range of loads.
No, the mounting set is not included. You should select a compatible mounting kit separately to suit your enclosure dimensions and mounting surface. This approach provides installation flexibility and helps optimize space in compact control cabinets or machine frames.
The 380V ACS510-01-195A-4+C135 is well-suited for conveyors, packaging lines, pumps, and general machine automation where compact footprint and precise motor control are essential. It supports efficient speed control and system integration with standard industrial power, improving throughput and reducing wear on mechanical components.
Certifications such as CE marking and IP ratings depend on regional configuration and the specific options chosen. SIL assessments and UL/IEC variants may be required for certain applications. Always consult the datasheet for your region and confirm with your supplier which certifications apply to your installation and safety requirements.
