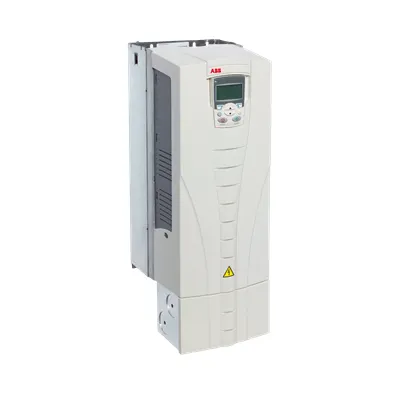

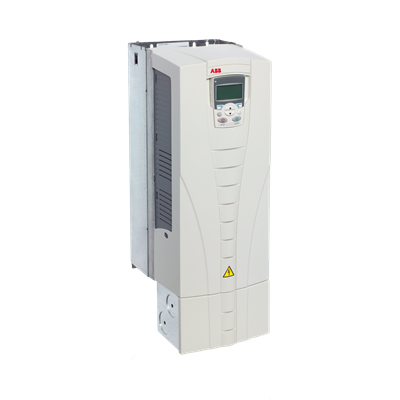

ABB ACS510-01-046A-4+C135 Servo Drive - Flange Mount
Part Number: 3ABD00021619
Quick Summary
ABB ACS510-01-046A-4+C135 servo drive delivers precise motor control for automation and motion systems. Designers and technicians often face challenges with sizing, wiring complexity, and mounting constraints that slow commissioning. This drive delivers robust protections and EMC compliance that help reduce fault-related downtime in demanding industrial environments. With a flange-mount form, 46A current at 380V, and seamless parameter transfer within the ABB ecosystem, engineers shorten installation time, improve repeatability, and reduce total ownership costs. Secondary benefits include compact footprint and scalable performance for conveyors, packaging lines, and machine tools, aligning with broader factory optimization initiatives.
Product Information
Extended Description
3ABD00021619 ABB: ACS510-01-046A-4+C135,46A,380V,for flange mounting, not including mounting set
Flange-mount form factor enables quick and accurate installation in tight enclosures, reducing alignment errors and enabling cleaner control-panel layouts. Business impact: faster commissioning and lower installation labor costs, especially in retrofits or limited-space installations. Application: packaging lines and machine tool setups where space is at a premium. The drive supports 46A at 380V, delivering sufficient torque for medium-sized servo motors, improving start-up torque and reducing process lag in conveyors and pick-and-place systems. Business impact: improved throughput and reduced downtime during start/stop cycles. Application: material handling and automated assembly. Compatibility with existing mounting frames and ABB control ecosystems simplifies parameter transfer and reduces configuration time. Business impact: consistent performance across machines and easier scale-up, useful for modular automation strategies. Application: multi-axis cells in flexible manufacturing. Advanced control capabilities and diagnostics enable proactive maintenance, reducing spare-part costs and unplanned outages. Business impact: higher overall equipment effectiveness (OEE). Application: continuous production lines requiring reliable control. The design supports easy integration with standard three-phase 380V supply and ABB engineering tools, offering straightforward installation, test, and commissioning workflows. Business impact: predictable project timelines and lower risk during deployment. Application: retrofits and new lines in packaging, robotics, and machine tooling.
Get a Quick Quote for a ABB 3ABD00021619
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00021619?
Enquire Now
FAQs
The ACS510-01-046A-4+C135 is designed for three-phase 380V power and integrates with ABB’s control ecosystem, simplifying parameter transfer and motor pairing. For best results, match the drive’s current rating (46A) to the motor’s full-load current and ensure mounting compatibility with your frame. Use ABB’s parameter templates to minimize commissioning time and ensure consistent performance across multiple axes.
Since mounting set is not included, verify your enclosure, mounting plate, and frame clearance before installation. Position the drive to minimize wiring length for control and power cables, maintain adequate ventilation, and ensure proper grounding and EMC considerations. Flange mounting reduces footprint and aligns with standard industrial frames, speeding retrofit projects and new installations alike.
With 46A at 380V, the drive provides strong starting torque and smooth velocity ramping, reducing mechanical stress on belts and gears. The advanced control algorithms enable precise speed control and repeatable motion profiles, improving packaging throughput and reducing product damage. Operators benefit from improved run-to-run consistency and easier troubleshooting with built-in diagnostics.
The ACS510 series is designed to meet widely used safety and EMC expectations in industrial environments. While specific certifications may vary by region, ABB drives typically support CE-related safety and EMC standards. Confirm local regulatory requirements and datasheet confirmations for your installation to ensure full compliance and audit readiness.
By delivering reliable motor control, reduced commissioning time, and compatibility with ABB’s diagnostics, the drive helps lower downtime and service costs. Predictable performance and remote monitoring capabilities can shorten mean time to repair (MTTR) and extend motor life through optimized torque and ramp profiles, delivering a favorable total cost of ownership in automated lines.
