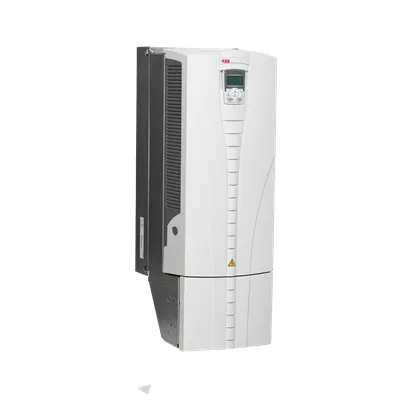

ABB ACS510 3ABD00022032-D Industrial Drive System - IP54
Part Number: 3ABD00022032-D
Quick Summary
The ACS510 motor drive delivers precise speed control for pumps, fans, and conveyors in industrial automation environments. When wiring and panel integration slow projects, the device helps reduce complexity and startup time. It carries IP54 protection and aligns with common safety and compliance requirements to keep equipment protected in challenging conditions. With a 380V supply and a 246A current rating, it suits mid-to-high power needs while remaining compact for easy installation. Adopting the ACS510 translates to tangible business benefits: lower energy use, improved process stability, and reliable ABB support for maintenance and upgrades. This combination supports scalable automation across manufacturing lines.
Product Information
Extended Description
3ABD00022032-D ABB: ACS510-01-246A-4+B055,246A,380V,IP54
IP54 rugged enclosure protects critical electronics from dust and moisture, reducing unscheduled downtime in damp production areas. This enables installation in not-fully-enclosed spaces and outdoor panels, expanding deployment options while maintaining reliability. The drive’s 380V input with a 246A current rating covers mid-to-high power applications such as conveyors and pumps, enabling robust performance without oversized cabinets or costly retrofits. A compact form factor and straightforward parameter profiles streamline commissioning, lowering installation time and cabinet space, which translates to faster project turnover and lower total cost of ownership. Energy-efficient motor control features improve process reliability and cut running costs, while compatibility with ABB accessories and standard control interfaces simplifies integration with existing PLCs and HMIs. Addressing common objections, the ACS510 offers scalable upgrade paths and a proven ABB service network to support ongoing maintenance and system longevity.
Get a Quick Quote for a ABB 3ABD00022032-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00022032-D?
Enquire Now
FAQs
When installing the ACS510 at 380V, ensure the power wiring matches industrial three-phase standards, verify compatible cabling for high-current operation, and protect the enclosure to maintain IP54 integrity. Plan cabinet space for the drive and any required cooling, and configure basic motor parameters to match the connected motor’s rating to prevent overloading.
Yes. With a 246A current rating and 380V input capability, the ACS510 accommodates mid-to-high power motors typical of conveyors and pumps. It provides precise speed control, smooth start/stop, and torque management that improve throughput and reduce mechanical stress on driven equipment.
The ACS510 comes with IP54 enclosure protection, which guards against dust and moisture. While IP54 is specified, confirm regional regulatory requirements such as CE marking or SIL-related safety features with your local ABB distributor or integrator for your specific installation and jurisdiction.
The ACS510 is designed to fit within ABB’s motor drive ecosystem, offering compatible parameter profiles and interfaces that align with ABB panels, PLCs, and control networks. This minimizes wiring complexity, simplifies commissioning, and supports future upgrades or expansions within a unified ABB automation stack.
Expect energy savings from optimized motor control, reduced downtime due to reliable IP54-rated protection, and lower maintenance costs thanks to robust ABB components and service support. The drive’s efficient performance and easy installation contribute to faster project delivery and improved production reliability over the system lifetime.
