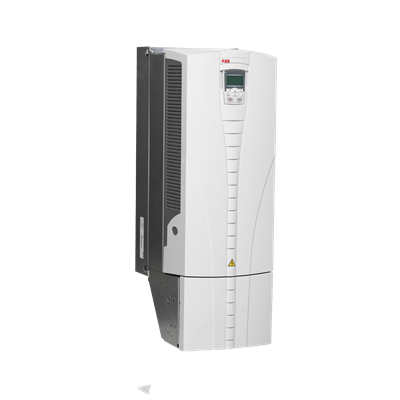

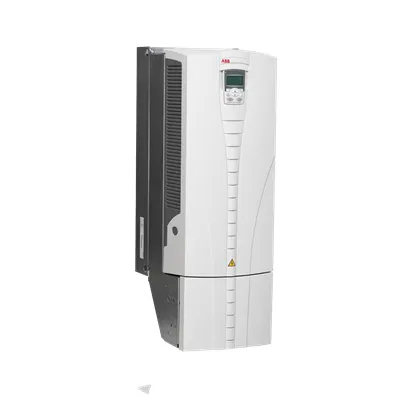

ABB ACS510-01-290A-4+C135 Drive - 380V, Flange Mount
Part Number: 3ABD00027043
Quick Summary
ABB ACS510-01-290A-4+C135 drive is a compact motor drive designed for precise speed and torque control in demanding automation environments. It excels in flange-mounted applications such as conveyors, packaging, and machine tooling where space is at a premium and installation time matters. This drive aligns with CE compliance standards and is designed to operate safely in industrial settings, with enclosure-dependent IP protection and built-in safety considerations for SIL workflows. By integrating seamlessly with ABB control architectures, it delivers consistent performance, reduced energy consumption, and simplified procurement across a modern automation stack. The result is faster commissioning, easier maintenance, and scalable performance as line demands evolve.
Product Information
Extended Description
3ABD00027043 ABB: ACS510-01-290A-4+C135,290A,380V,for flange mounting, not including mounting set
Feature: 380V operation with a 290A current rating supports high-load motor control. Business Impact: Delivers stable torque and smooth starts, reducing mechanical wear and energy spikes. Application: well-suited for heavy conveyors, forming presses, and pick-and-place packaging lines. Feature: Flange mounting compatibility simplifies mechanical integration. Business Impact: Cuts installation time, reduces alignment errors, and improves serviceability. Application: ideal when retrofitting existing flange-mounted motors in robotics and assembly lines. Feature: Compact form factor aids space-constrained panels. Business Impact: Frees enclosure space and speeds up wiring and commissioning. Application: cabinet installations in small automation booths and machine tools. Feature: Built-in motor protection and fault diagnostics. Business Impact: Minimizes unplanned downtime and simplifies maintenance scheduling. Application: critical in high-production environments such as packaging and material handling. Feature: Seamless ABB control architecture integration. Business Impact: Reduces engineering time and improves data visibility. Application: integrates with ABB PLCs, HMI, and SCADA.
Get a Quick Quote for a ABB 3ABD00027043
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00027043?
Enquire Now
FAQs
The ACS510-01-290A-4+C135 is designed for flange-mounted motor assemblies and supports a 380V three-phase supply. Ensure mounting pattern matches the motor and that mounting set is available to complete the mechanical fit. Verify enclosure rating for the operating environment and follow ABB commissioning guidelines for safe integration.
Key specs include a 290A current rating and 380V input, enabling strong torque delivery for demanding loads. The drive provides overcurrent protection and thermal monitoring to limit overloads, reducing motor stress and downtime. Use proper derating in high ambient temperatures to maintain reliability.
Yes. The ACS510-01-290A-4+C135 is well-suited for packaging lines and conveyors, offering precise speed control, smooth start-stop performance, and reliable motor protection. Its flange-mount compatibility simplifies retrofits and reduces installation time, helping you meet throughput targets and minimize process variation.
The drive aligns with CE compliance requirements as a standard in industrial automation. IP protection depends on the enclosure used, and safety-focused configurations may offer SIL-compliant considerations. Always confirm with the specific product documentation for your installation and regional regulatory requirements.
Expect reduced unplanned downtime thanks to built-in diagnostics and motor protection, while smoother torque control lowers mechanical wear. Energy-efficient operation and shorter commissioning cycles contribute to lower total cost of ownership, with easier integration into existing ABB control ecosystems for faster deployment and ongoing support.
