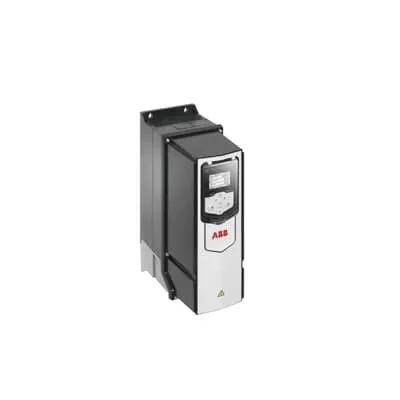

ABB ACS880-01-09A4-3+B056 Drive - IP55 Enclosure
Part Number: 3ABD00035980-D
Quick Summary
The ABB ACS880-01-09A4-3+B056 Drive is a compact wall-mounted LV AC motor drive for industrial automation. Engineers often struggle with space, installation complexity, and harmonic distortion in harsh environments. This model features IP55 protection, CE compliance, and optional functional safety, delivering reliable performance with modern control capabilities. Its compact, wall-mounted design reduces enclosure footprint and simplifies installation in crowded plant rooms. With built-in harmonic filtering and readily available options such as brake chopper, EMC filter, protocol adapters, and I/O extension modules, you gain flexibility for future upgrades and cross-vendor integration. This combination supports reliable uptime, safe operation, and scalable automation across industries.
Product Information
Extended Description
3ABD00035980-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: Built-in harmonic filtering choke is standard. Business impact: Reduces total harmonic distortion (THD) and minimizes conductor heating, improving power quality and lowering energy waste. Application: Conveyor lines, pumps, and fans where motor loads vary and power quality is critical. The ACS880-01 drives help meet compliance requirements while maintaining smooth operation in mining, cement, and metal processing facilities. Feature: Compact package and wall-mount capability. Business impact: Saves valuable floor space and speeds installation, reducing enclosure and wiring costs. Application: Automated material handling lines and compact control rooms where space is at a premium. Feature: IP55-rated enclosure and cabinet option. Business impact: Withstands dust and incidental water exposure, lowering maintenance and downtime. Application: Harsh environments in oil & gas, Pulp & Paper, and wastewater plants. Feature: Broad control capabilities for cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, pumps, and fans. Business impact: Enables multi-application drives with a single platform, reducing training and spare parts requirements. Application: Diverse industrial installations needing versatile drive control. Feature: Optional brake chopper, EMC filter, protocol adapter, and I/O extension modules. Business impact: Simplifies integration with PLCs, improves EMC compliance, and enables extended I/O expansion for complex automation. Application: Modernizing legacy lines and expanding control capabilities. Feature: Wall-mount as standard and cabinet option. Business impact: Flexible deployment across plant layouts, reducing retrofitting needs and installation risk. Application: Retrofit projects and new builds requiring scalable architecture. Industry context: ABB ACS880-01 drives are trusted for oil & gas, mining, metals, chemicals, cement, power plants, and material handling, delivering reliable performance with practical installation benefits.
Get a Quick Quote for a ABB 3ABD00035980-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00035980-D?
Enquire Now
FAQs
The ACS880-01-09A4-3+B056 is designed for wall mounting as standard, with an optional cabinet installation. Its IP55 rating makes it suitable for dusty or damp environments, reducing enclosure-related maintenance. Plan for adequate ventilation and space for wiring, and consider the availability of an EMC filter or protocol adapter if you require enhanced noise suppression or integration with existing control networks. A compatible I/O extension module can simplify wiring to PLCs and HMI panels.
Key specs include a nominal power rating of 4 kW and a maximum current of 10 A. The device features an IP55 enclosure for industrial environments and a built-in harmonic filtering choke to reduce THD. Optional add-ons include a brake chopper and EMC filter, plus protocol adapters and I/O extension modules to expand functionality and integration with control systems.
Yes. The ACS880-01 family is designed for a broad set of heavy-load applications including conveyors and cranes. Its built-in harmonic filtering improves power quality on variable-speed loads, while IP55 protection supports robust operation in industrial plants. The drive also supports extended I/O and communication options to integrate with plant PLCs and SCADA systems.
The drive carries CE compliance and an IP55-rated enclosure for protection in demanding environments. Optional functional safety features are available to meet safety-related requirements in appropriate applications. For regulatory compliance, verify local standards and ensure compatibility with your plant’s safety and EMC requirements when configuring brake and safety options.
The built-in harmonic filtering reduces electrical stress and improves power quality, which can lower cooling loads and extend motor life. The compact package saves space and simplifies wiring, reducing installation time and labor costs. Optional accessories like brake choppers, EMC filters, and IO extensions enable easier system integration, potentially lowering total cost of ownership and accelerating return on investment on automation projects.
