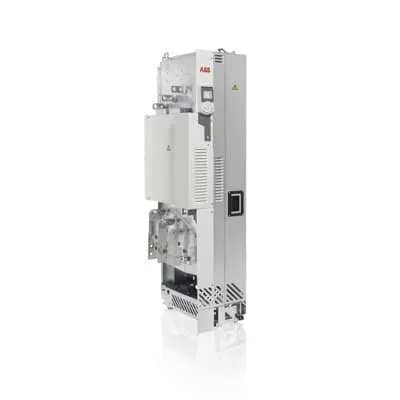

ABB 3ABD00036863-D Drive Module - IP00/IP20 Enclosure
Part Number: 3ABD00036863-D
Quick Summary
ABB 3ABD00036863-D Drive Module is a plug-in LV AC general purpose drive designed to control motors in compressors, conveyors, pumps, and more. Many engineers struggle with lengthy setup, mismatched hardware, and unreliable maintenance when deploying variable frequency drives, but this module simplifies configuration with a straightforward settings menu and intelligent assistants. It aligns with industry protections, including CE-compliant design and IP-rated enclosures, with IP00 standard and IP20 option for cabinet installations. This approach delivers predictable performance and reduced downtime while delivering scalable, energy-efficient control across light industries. By combining easy commissioning with robust hardware, it supports faster project turnover and lower total cost of ownership in automation projects.
Product Information
Extended Description
3ABD00036863-D ABB: The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature plug-in readiness reduces wiring time and accelerates commissioning, delivering faster project turnover for machines like compressors, pumps, and conveyors. Business impact includes shorter panel builds and reduced on-site testing, enabling quicker time-to-market and lower labor costs. Application: suitable for packaging lines and material handling where reliable motor control is essential. Feature built-in settings menu and assistants simplify parameter tuning and maintenance, reducing engineering hours and error rates. Application: ideal for food and beverage processing, plastics, and textiles where consistent process control matters. Feature IP00 standard enclosure with IP20 option supports cabinet integration, improving protection and ease of installation. Application: controls in PLC-based systems within machine rooms. Feature rugged, robust design enhances reliability in harsh environments, decreasing downtime and extending service intervals. Application: agriculture, plastics, and heavy-duty conveyors. Feature wide torque and speed control supports energy-efficient operation and smoother starts/stops, contributing to measurable energy savings. Application: pumps and fans on variable torque loads, with scalable control for growing lines.
Get a Quick Quote for a ABB 3ABD00036863-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00036863-D?
Enquire Now
FAQs
Installation options focus on cabinet deployment with IP00 as standard and IP20 as an optional enclosure. The drive is plug-in ready, reducing wiring and panel space while simplifying integration with PLCs and motor starters. This makes it ideal for panel builders and machine builders seeking quick, reliable installation in compressors, pumps, or conveyors.
Key specs include 355 kW nominal power and 650 A continuous current for heavy-duty general purpose drive tasks. It supports both variable torque and constant torque loads and is suitable for three-phase motors in compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. With plug-in simplicity and built-in protections, it provides efficient, reliable motor control across light industry applications.
Yes. The drive is designed for light industries including food and beverage, plastics, textile, material handling, and agriculture. Its IP-rated enclosure options and integrated setup tools help meet industry hygiene, reliability, and uptime requirements while enabling energy-efficient, process-focused automation on packaging lines, processing equipment, and conveying systems.
The module offers IP00 standard enclosure with an IP20 option for cabinet installations and a CE-compliant design typical of ABB drives, including built-in safety and EMI protections. These characteristics support regulatory alignment, simplify qualification for facilities requiring CE marking, and reduce risk in compliant manufacturing environments.
Deploying the ACS580-04-650A-4 can reduce wiring complexity, commissioning time, and energy waste through precise motor control, contributing to faster ROI. Maintenance benefits arise from solid-state electronics, fewer external components, and diagnostic tools with built-in assistants for parameter checks, leading to lower maintenance labor and reduced downtime compared with legacy drives.
